3122RL

Discontinued

NEMA

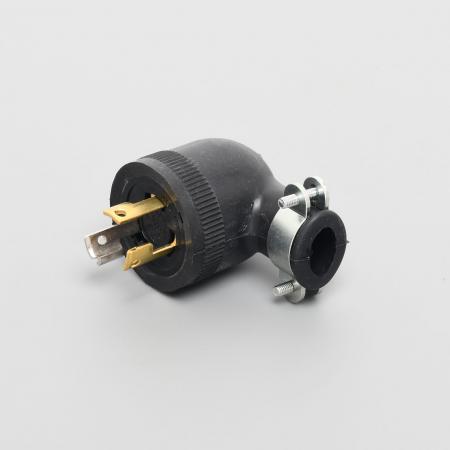

Plug (Rubber Housing)

Plug (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 250V (NEMA L6-15)

Plug (Rubber Housing)

  • Catalog No.

    3122RL

  • Price(JPY YEN)

    ¥0

  • Discontinued Date

    February 20th, 2025

  • Alternative Product

    3122EL-L6

Twist Locking

  • NEMA Configuration No.

    NEMA L6-15

  • Color

    Black

  • Wire Size

    2PNCT/VCT 2mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4

  • Weight

    78.2g

  • Note

    Rubber Housing
    Angle Plug
    Discontinued on February 20th, 2025
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
This plug is that allows the attached flexible cord exit at a right angle to the plug face.
The material of the main body is made of thermosetting resin excellent in durability and insulation properties, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.

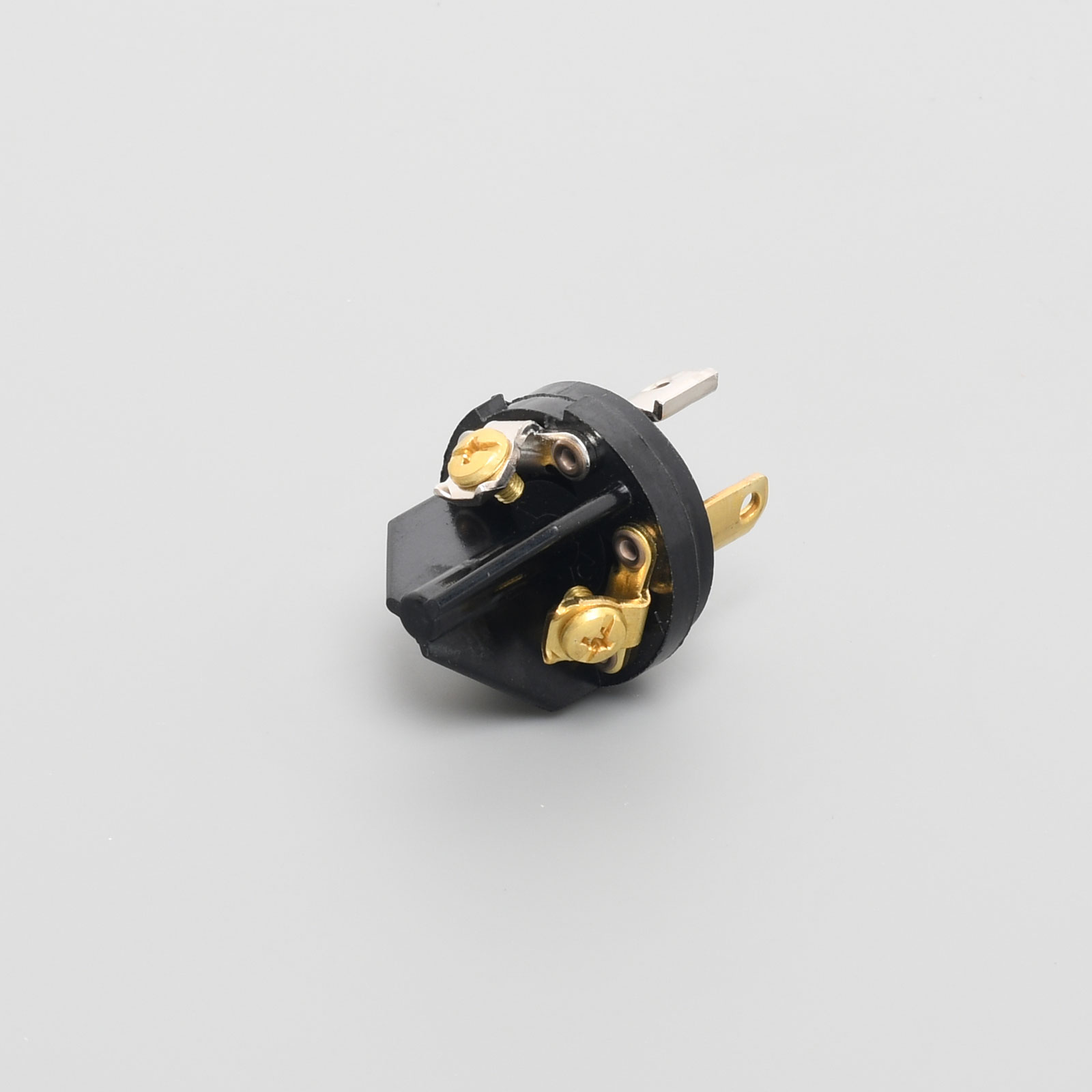

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
