3312N-L5UL

NEMA

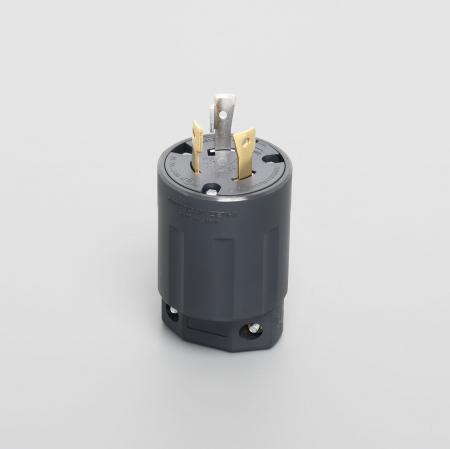

UL Listed and CSA Certified Plug (Nylon Housing)

UL Listed and CSA Certified Plug (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 125V (NEMA L5-30)

UL Listed and CSA Certified Plug (Nylon Housing)

  • Catalog No.

    3312N-L5UL

  • Price(JPY YEN)

    ￥2,990

Twist Locking

  • NEMA Configuration No.

    NEMA L5-30

  • Color

    Black

  • Wire Size

    for UL/CSA: 10AWG Type SJ
    for in Japan: 2PNCT/VCT 5.5mm²

  • Connectivity

    for UL/CSA: Push-in-screw Terminal　|　for in Japan: Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    for in Japan: R5.5-5、R8-5

  • Body Flammability

    UL94 V-0

  • Weight

    130.9g

  • Note

    Nylon Housing
    UL Listed and CSA Certified
    RoHS2 Compliant

*When using it with direct current, be sure to shut off the power supply on the equipment side before disconnecting the plug to extinguish the arc discharge.

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
It is a UL standard ・ CSA standard approved specification plug.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivitys is "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
