3120GD

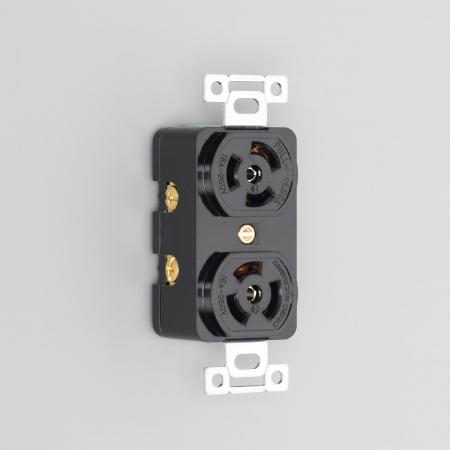

Duplex Receptacle

Duplex Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 15A 250V

Duplex Receptacle

  • Catalog No.

    3120GD

  • Price(JPY YEN)

    ￥3,170

2 Twist Locking

  • Color

    Black

  • Wire Size

    1.6φ〜2φ、2mm²、3.5mm²(Crimping Terminal only)

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    143.1g

  • Note

    Duplex
    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
It is duplex receptacle with two outlets.

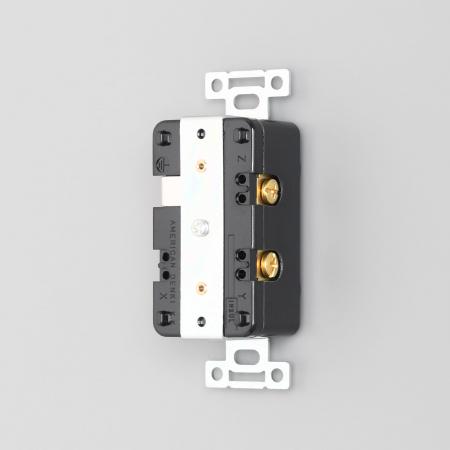

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
