7222GR

NEMA

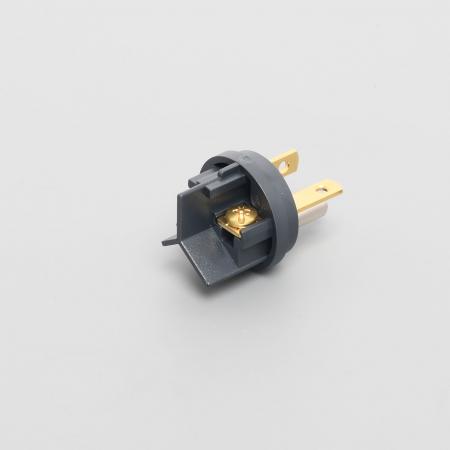

Plug (Rubber Housing)

Plug (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 250V (NEMA 6-20)

Plug (Rubber Housing)

  • Catalog No.

    7222GR

  • Price(JPY YEN)

    ￥1,120

Straight Blade

  • NEMA Configuration No.

    NEMA 6-20

  • Color

    Black

  • Wire Size

    2PNCT/VCT 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    54.9g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.

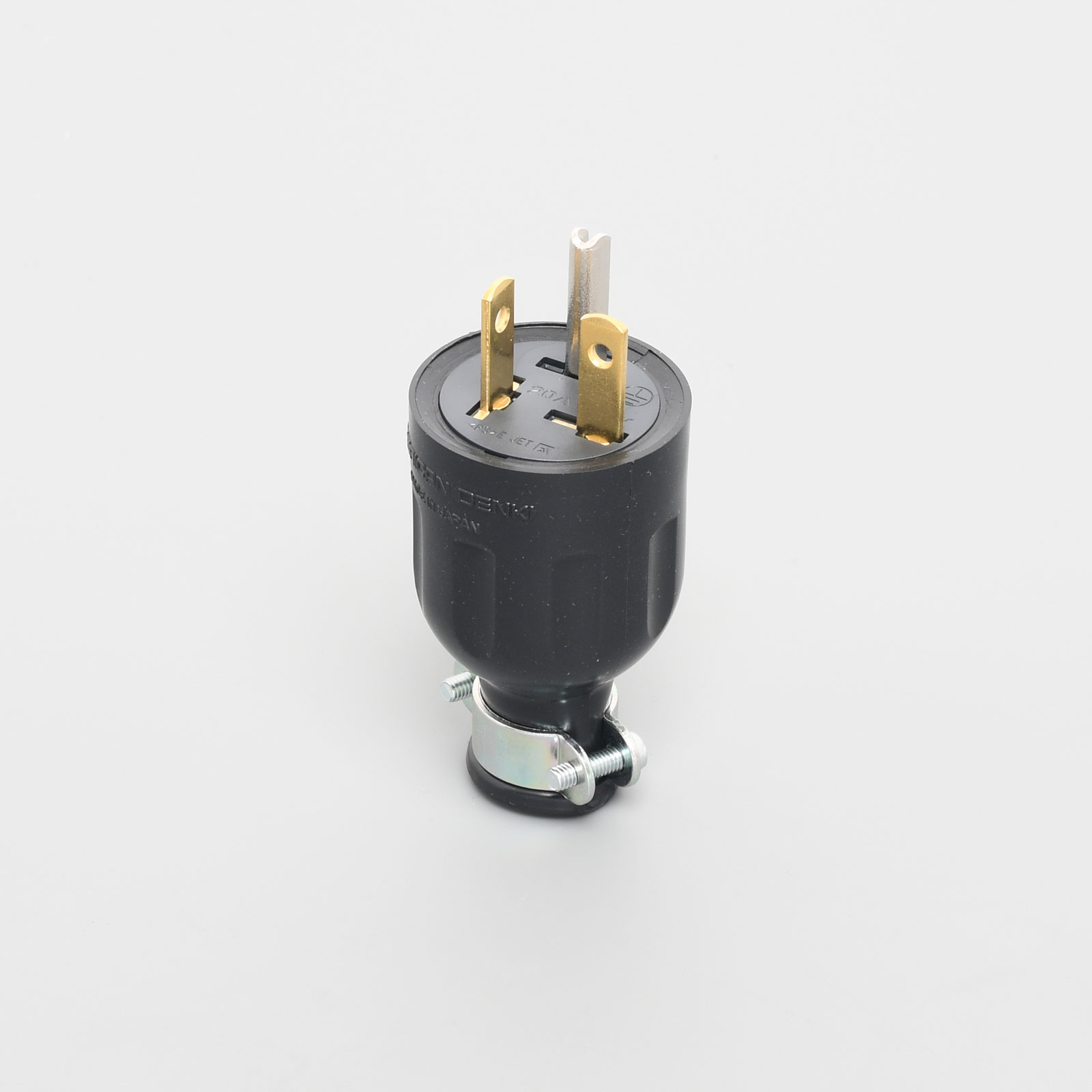

The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of flame-retardant (UL94 V-1) soft rubber.

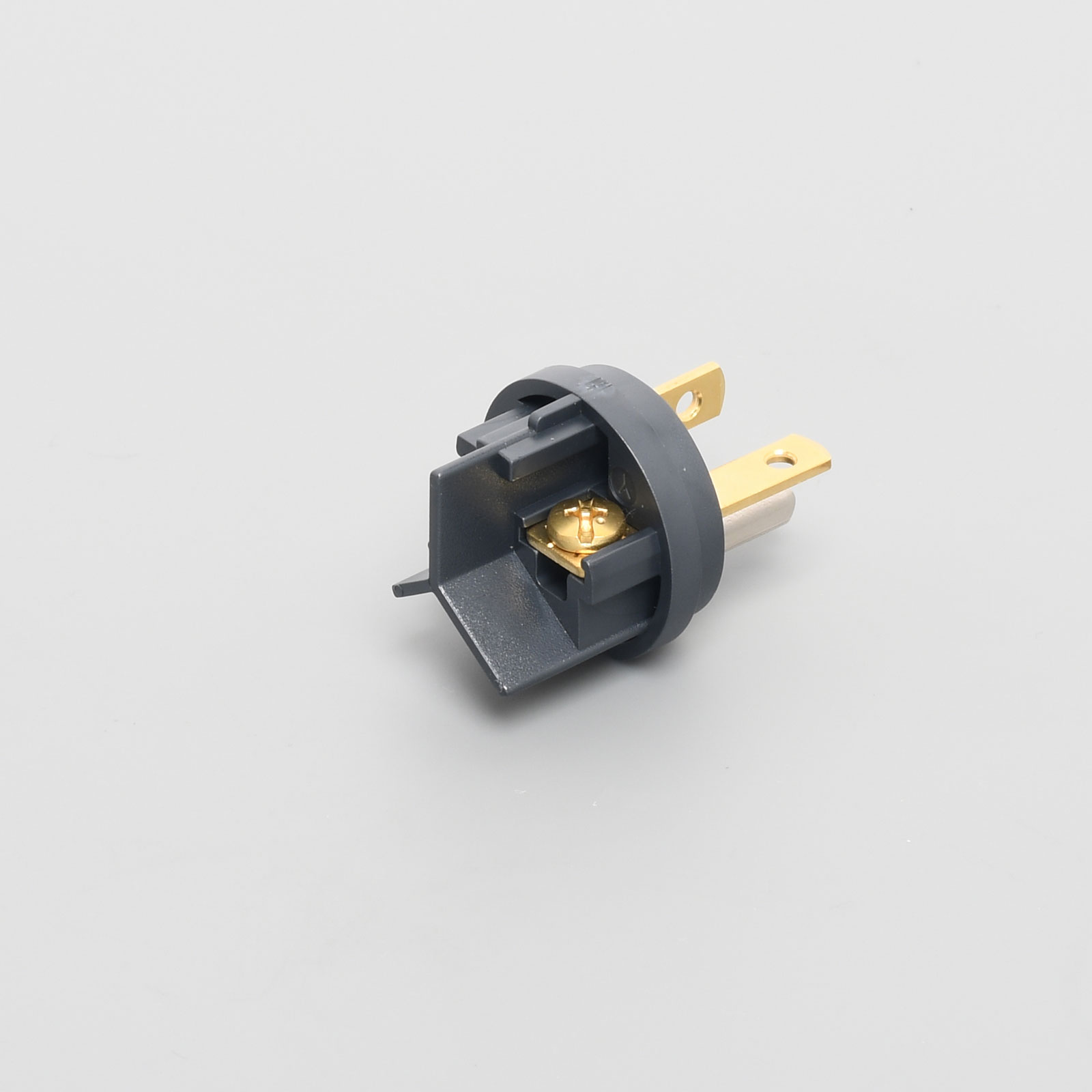

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
