7220GD-ALT

NEMA

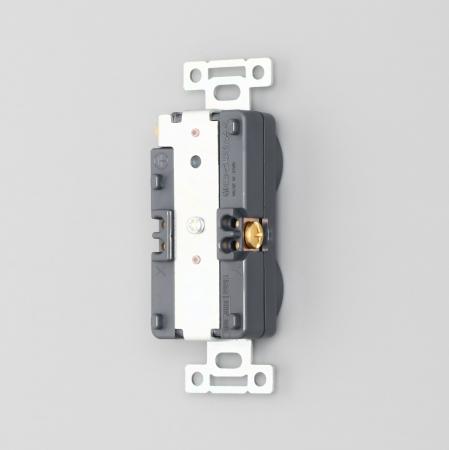

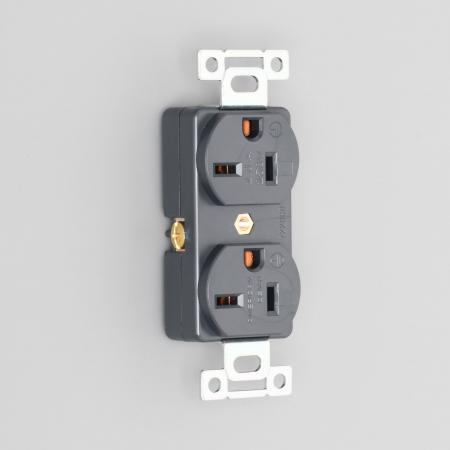

Duplex Receptacle

Duplex Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 250V (NEMA 6ALT-20)

Duplex Receptacle

  • Catalog No.

    7220GD-ALT

  • Price(JPY YEN)

    ￥1,330

Straight Blade

  • NEMA Configuration No.

    NEMA 6ALT-20

  • Color

    Black

  • Wire Size

    2φ〜2.6φ、3.5mm²、5.5mm²(Crimping Terminal only)

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    79.6g

  • Note

    Duplex
    RoHS2 Compliant

*NEMA 6ALT-20 is a Canadian standard compatible with NEMA 6-20.

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
It is duplex receptacle with two outlets.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
