9222N

Plug (Nylon Housing)

Plug (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

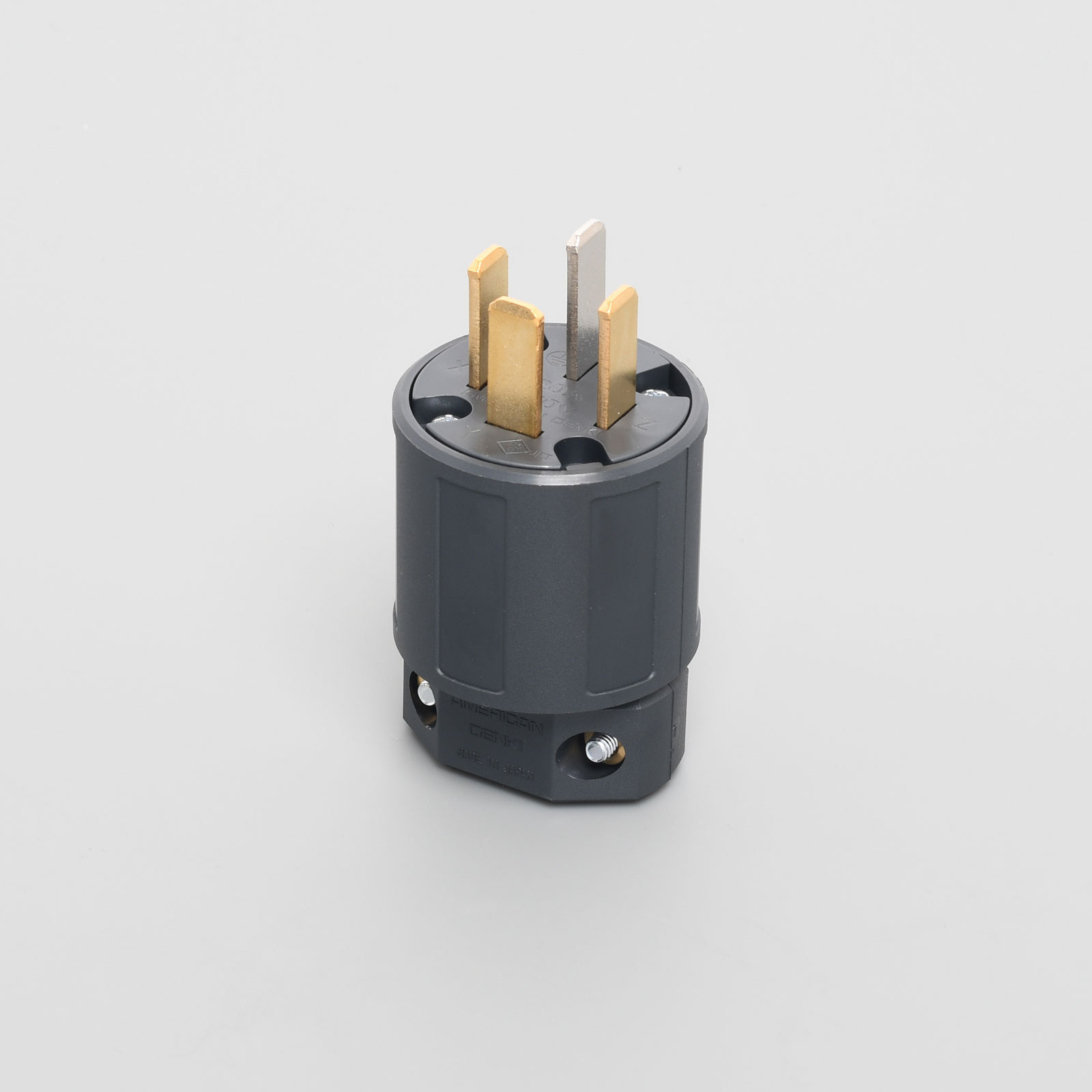

3-Pole 4-Wire Grounding 20A 250V

Plug (Nylon Housing)

  • Catalog No.

    9222N

  • Price(JPY YEN)

    ￥1,390

Straight Blade

  • Color

    Black

  • Wire Size

    2PNCT/VCT 3.5mm²、5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    84.35g

  • Note

    Nylon Housing
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

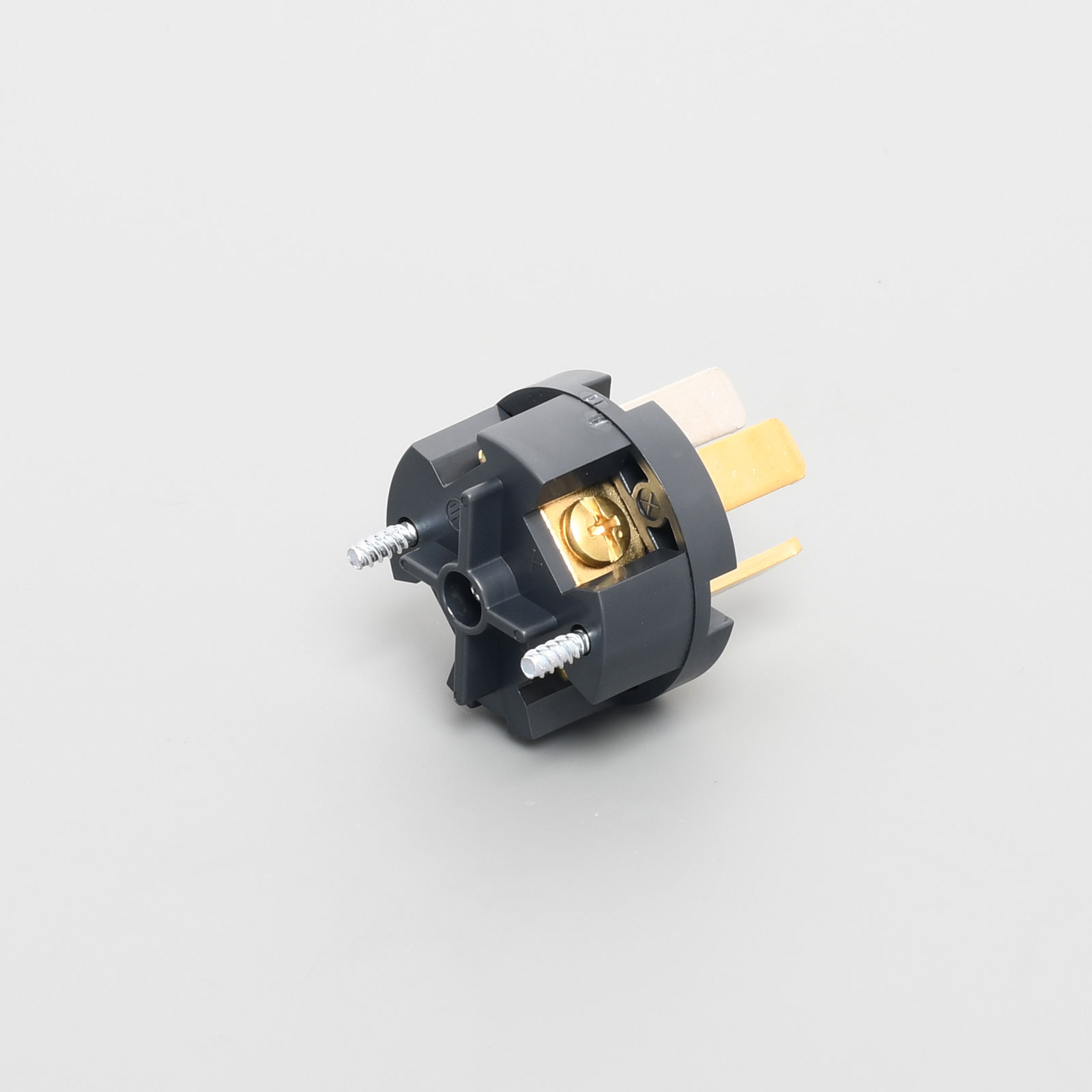

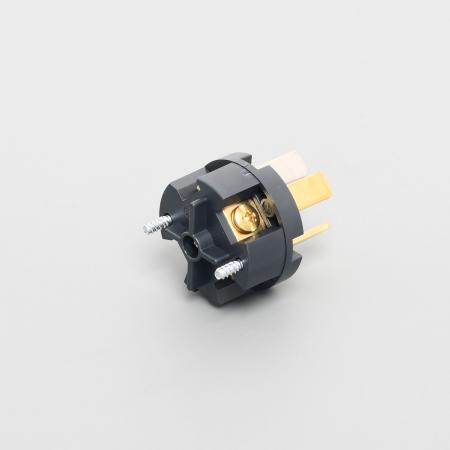

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
