9220

Receptacle

Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

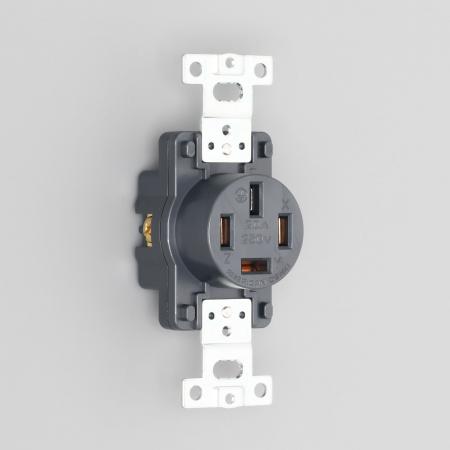

3-Pole 4-Wire Grounding 20A 250V

Receptacle

  • Catalog No.

    9220

  • Price(JPY YEN)

    ￥1,190

Straight Blade

  • Color

    Black

  • Wire Size

    2φ〜2.6φ、3.5mm²、3.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    81.3g

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

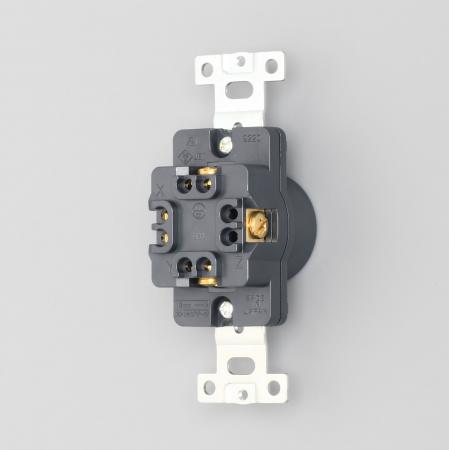

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
