3220-L6UL

NEMA

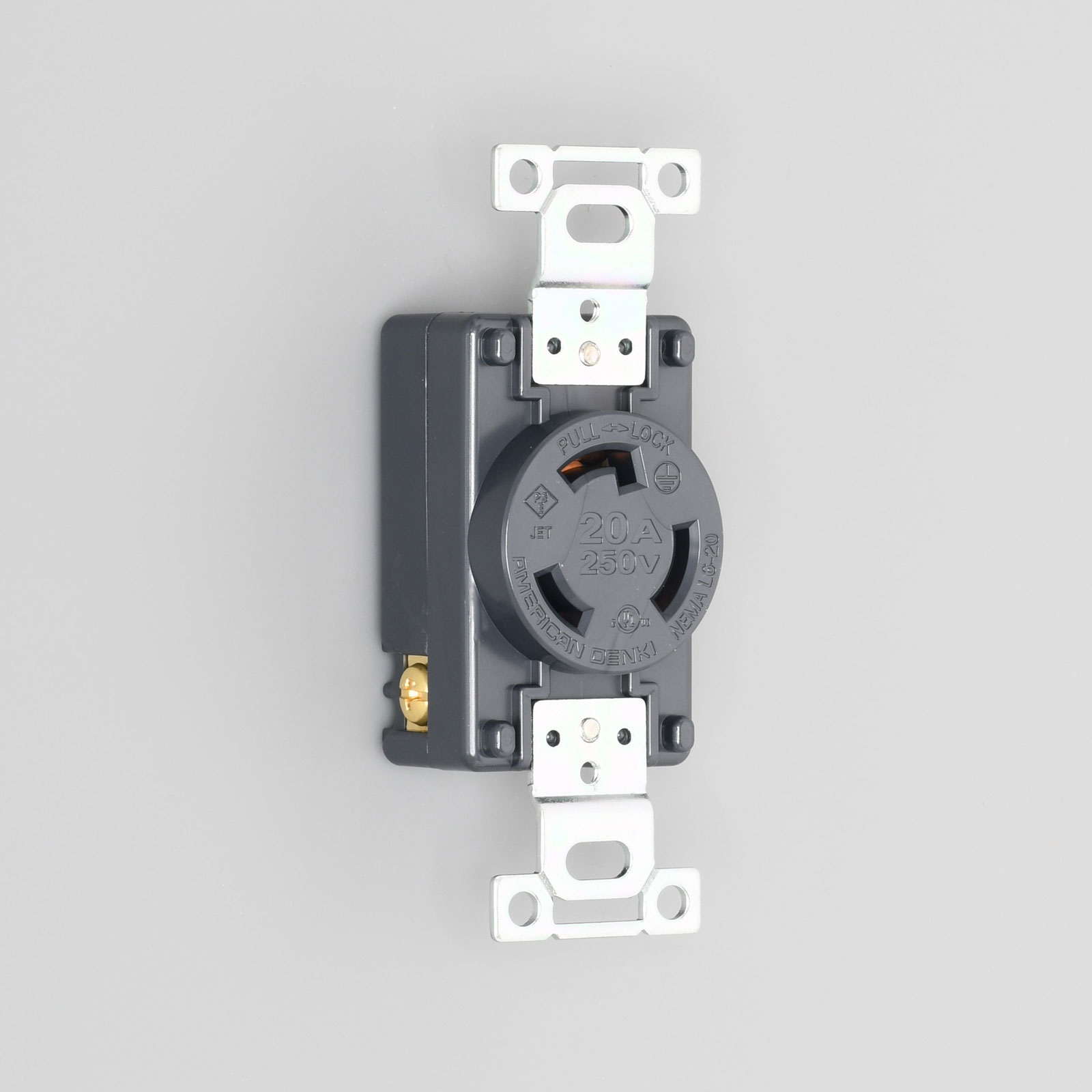

UL Listed and CSA Certified Receptacle

UL Listed and CSA Certified Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 20A 250V (NEMA L6-20)

UL Listed and CSA Certified Receptacle

  • Catalog No.

    3220-L6UL

  • Price(JPY YEN)

    ￥3,100

Twist Locking

  • NEMA Configuration No.

    NEMA L6-20

  • Color

    Black

  • Wire Size

    for UL/CSA: 12AWG
    for in Japan: 2φ〜2.6φ、3.5mm²

  • Connectivity

    for UL/CSA: Push-in-screw Terminal　|　for in Japan: Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    for in Japan: 3.5-4 (Spade Type)

  • Body Flammability

    UL94 V-0

  • Weight

    78.8g

  • Note

    UL Listed and CSA Certified
    RoHS2 Compliant

*When using it with direct current, be sure to shut off the power supply on the equipment side before disconnecting the plug to extinguish the arc discharge.

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
It is receptacle of UL standard and CSA standard approved specification. It has high safety specification such as green terminal screw and body earth.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

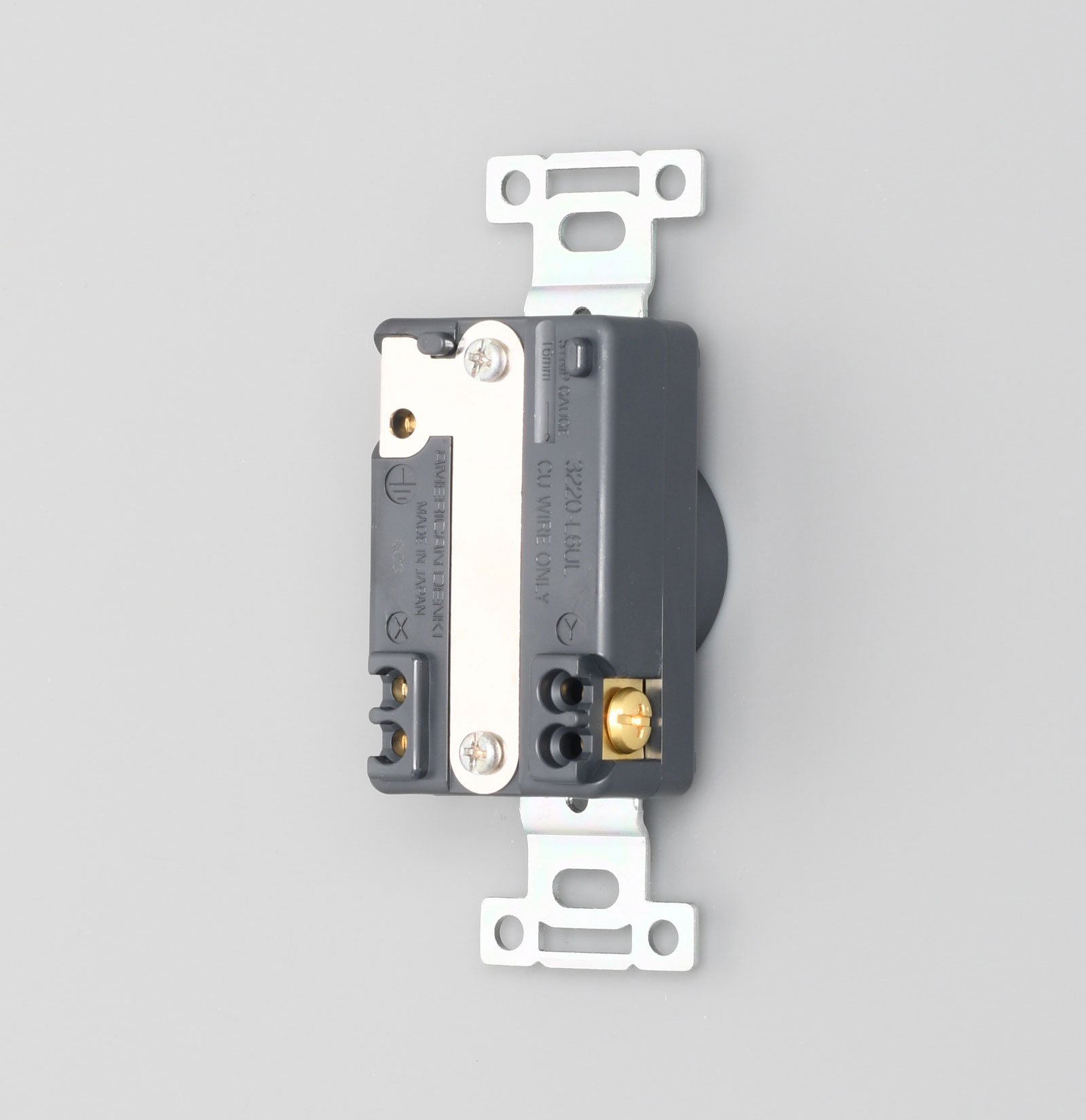

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
