3364R

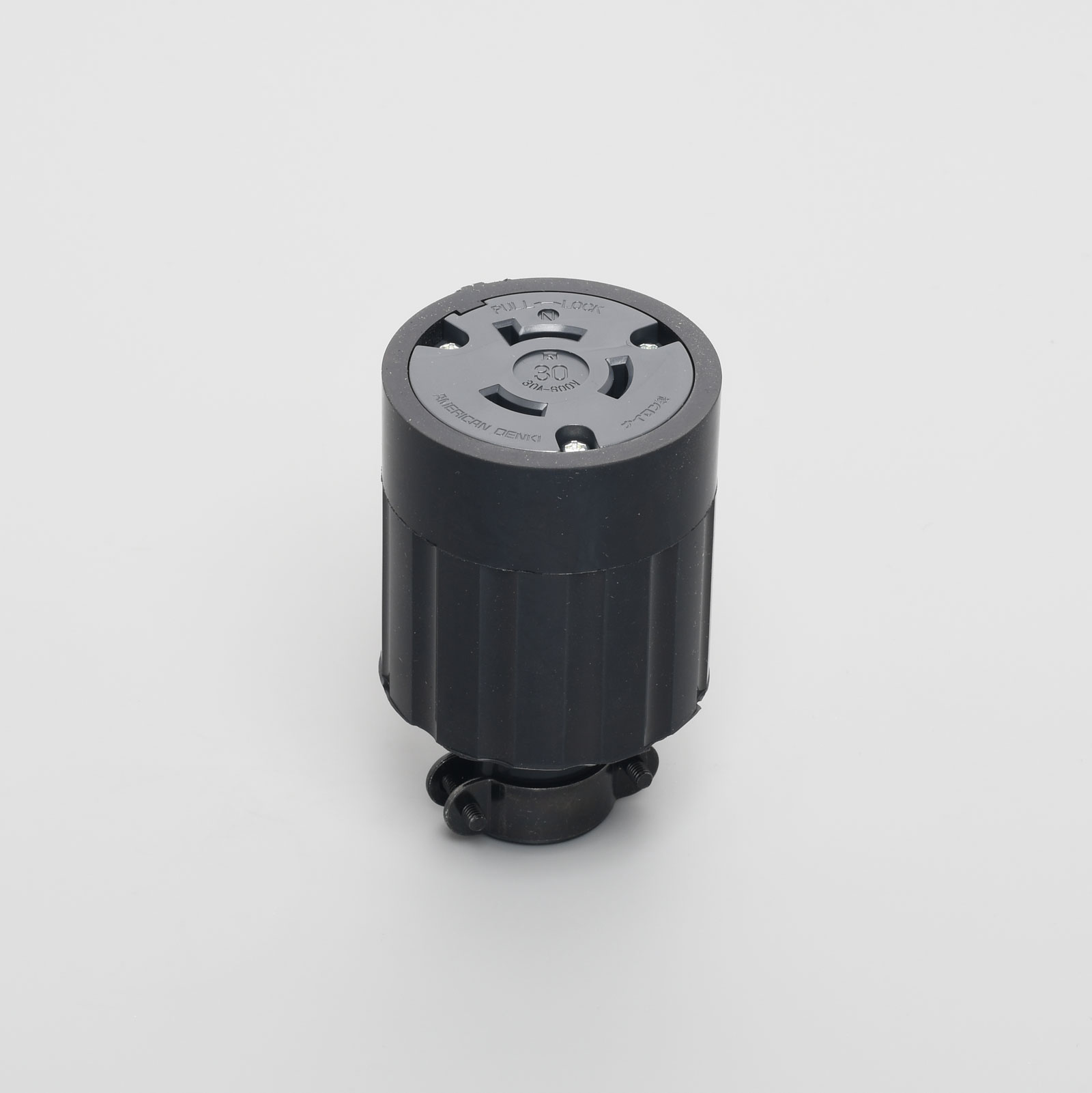

Connector Body (Rubber Housing)

Connector Body (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 30A 600V

Connector Body (Rubber Housing)

  • Catalog No.

    3364R

  • Price(JPY YEN)

    ￥3,750

Twist Locking

  • Color

    Black

  • Wire Size

    2PNCT/VCT 5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5

  • Body Flammability

    UL94 V-0

  • Weight

    242.9g

  • Note

    Rubber Housing
    RoHS2 Compliant

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
