4660

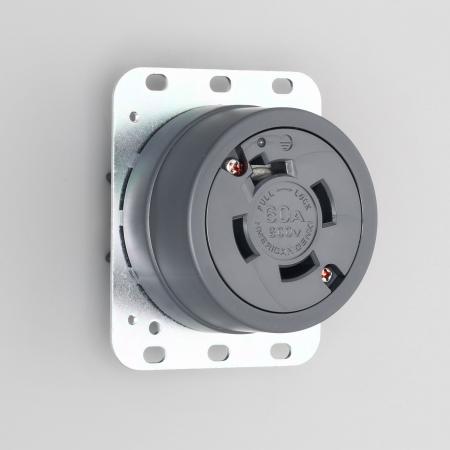

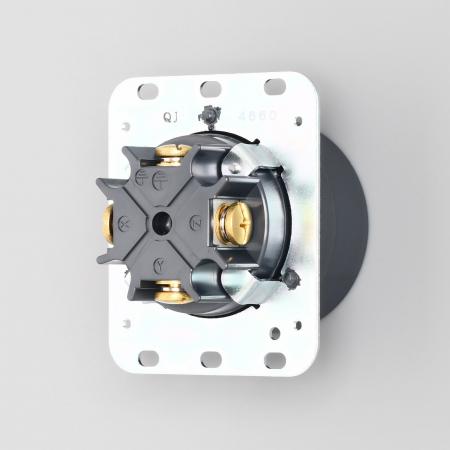

Receptacle

Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 60A 600V

Receptacle

  • Catalog No.

    4660

  • Price(JPY YEN)

    ¥7,380

Twist Locking

  • Color

    Black

  • Wire Size

    14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R14-6

  • Body Flammability

    UL94 V-0

  • Weight

    243g

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
