Twist Locking Wiring Devices - AMERICAN DENKI
Expert of wiring devices such as Twist Locking Receptacle and Plug.
Google Custom Search
4662R
3-Pole 4-Wire Grounding 60A 600V

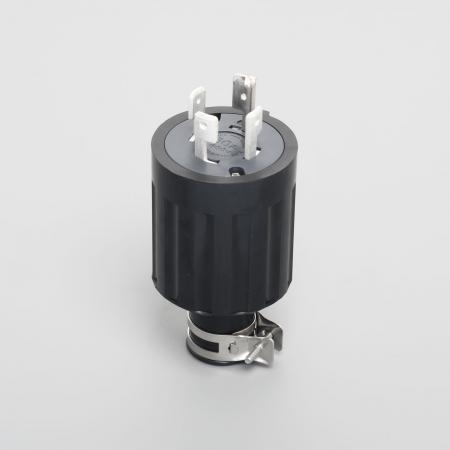

Plug (Rubber Housing)
-
Catalog No.
4662R
-
Price(JPY YEN)
￥11,720
Twist Locking
-
Color
Black
-
Wire Size
2CT/VCT 14mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R14-6
-
Body Flammability
UL94 V-0
-
Weight
359.0g
-
Note
Rubber Housing
RoHS2 Compliant
Feauture
Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
Optional Accessory
Related Product
-
Catalog No.：
4660Receptacle
3-Pole 4-Wire Grounding 60A 600V
-
Catalog No.：
4664EConnector Body (Polycarbonate Housing)
3-Pole 4-Wire Grounding 60A 600V
-
Catalog No.：
4664RWConnector Body (Rubber Housing)
3-Pole 4-Wire Grounding 60A 600V
-
Catalog No.：
4666Flanged Receptacle
3-Pole 4-Wire Grounding 60A 600V
-
Catalog No.：
4661RWWaterproof Surface Receptacle
3-Pole 4-Wire Grounding 60A 600V
-
Catalog No.：
4666RWWaterproof Panel Receptacle
3-Pole 4-Wire Grounding 60A 600V
