Double Tap

Double Tap

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 20A 250V

Double Tap

  • Catalog No.


  • Price(JPY YEN)


2 Twist Locking

  • Color


  • Wire Size

    2CT/VCT 3.5mm², 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4, R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight


  • Note

    RoHS2 Compliant

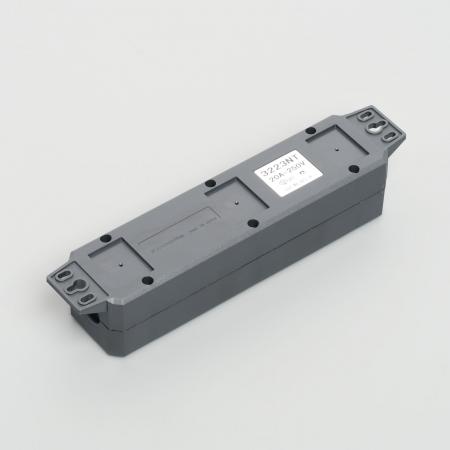

Double tap 20A is the high-spec portable multiple receptacle, which is providing a series of electrical power all in one place, having nylon cases (flame retardancy UL94 V-0) and double terminals for through wiring, accepts a wide range of VCT cable sized 3.5~5.5. It has 2 outlets and it can be used up to a total of 20A. It corresponds to wire conductor size increase for reducing current-carrying loss. On the back side, it is possible to install 3 optional magnets (Z0206) sold separately.
It is best use for temporary power supply at 20A machine equipment, peripherals, servers, and exhibition halls.
