3-Pole 4-Wire Grounding 60A 600V

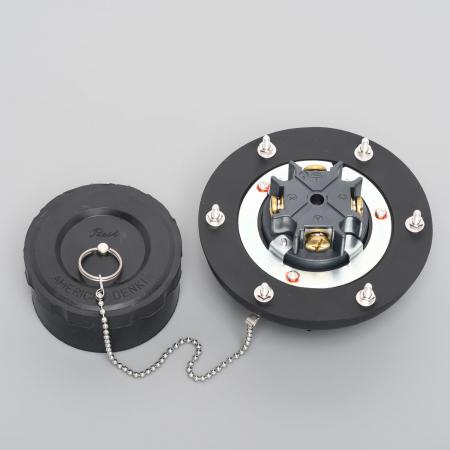

Waterproof Panel Receptacle

  • Catalog No.


  • Price(JPY YEN)


Twist Locking

  • Waterproof IP Rating

    IP65 Equivalent Product

  • Color


  • Wire Size


  • Connectivity

    Crimping Terminal

  • Crimp Terminal


  • Body Flammability

    UL94 V-0

  • Weight


  • Note

    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.


Waterproof Panel Receptacle is the high capacitance waterproof contact device having performance of IP65 (International Protection Code) which is intended for flush installed an appliance or equipment, and which is intended to establish electrical connection with an inserted waterproof plug.
Both when used and when not in use (waterproof cover installation) are IP65 equivalent products based on JIS C 0920 (protection class by electrical machine equipment shell).
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Maintain the waterproof performance by fixing the chloroprene rubber packing on the base which becomes the mounting surface with the attached mounting screw and nut.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side.
