HK3223ELB

Waterproof

Waterproof Portable Dividing Box

Waterproof Portable Dividing Box

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 3-Wire 30A 250V

Waterproof Portable Dividing Box

  • Catalog No.

    HK3223ELB

  • Price(JPY YEN)

    ￥83,810

4 Twist Locking

  • Waterproof IP Rating

    IP44 Equivalent Product

  • Color

    Orange

  • Note

    with 30A Earth Leakage Circuit Breaker
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

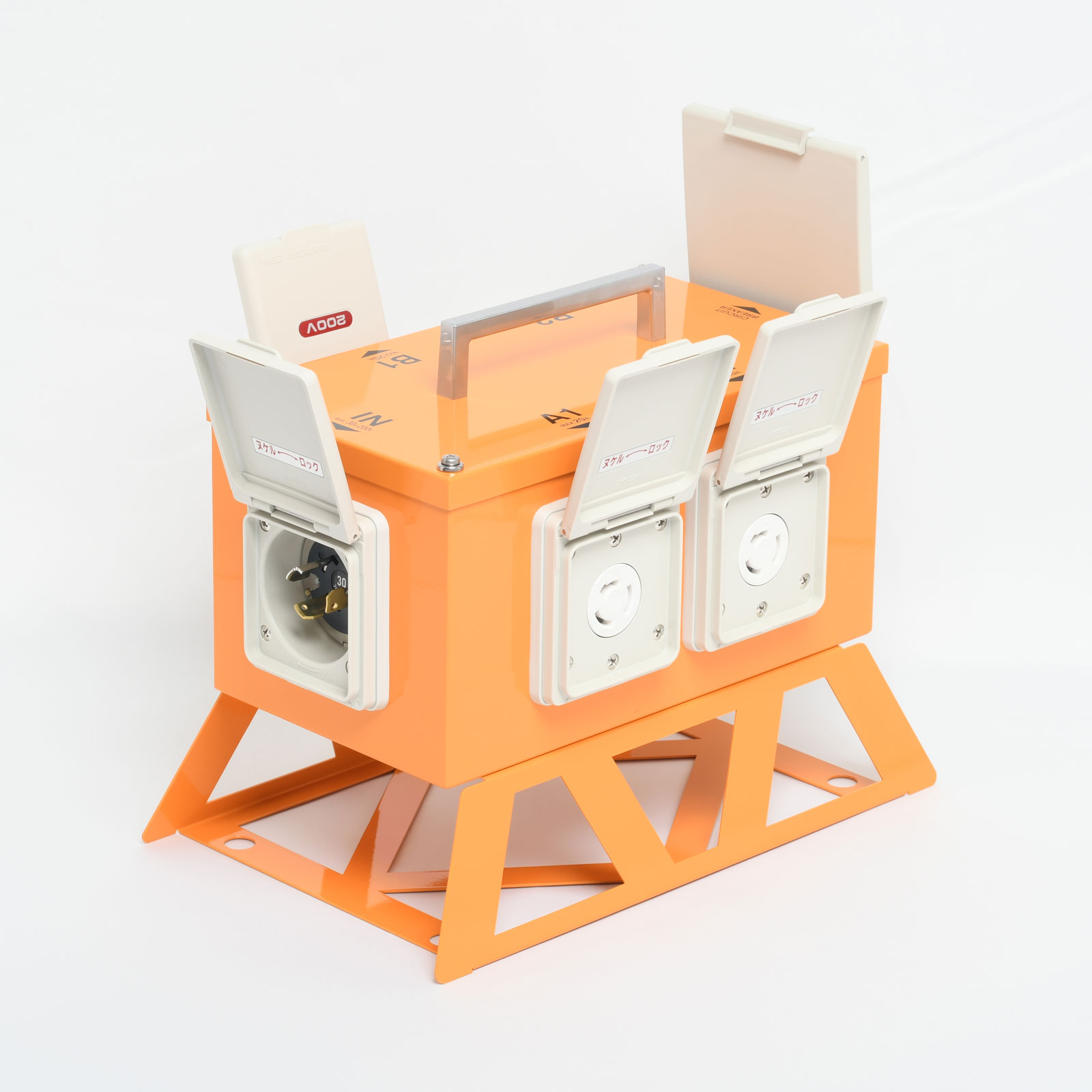

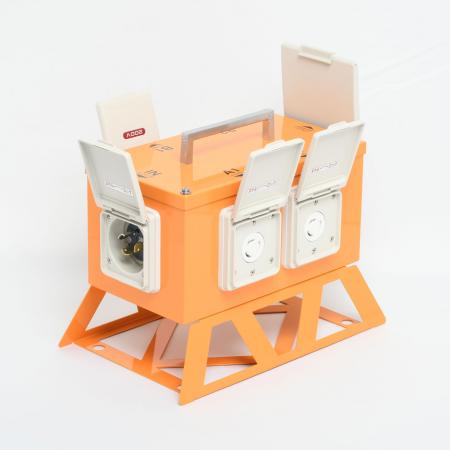

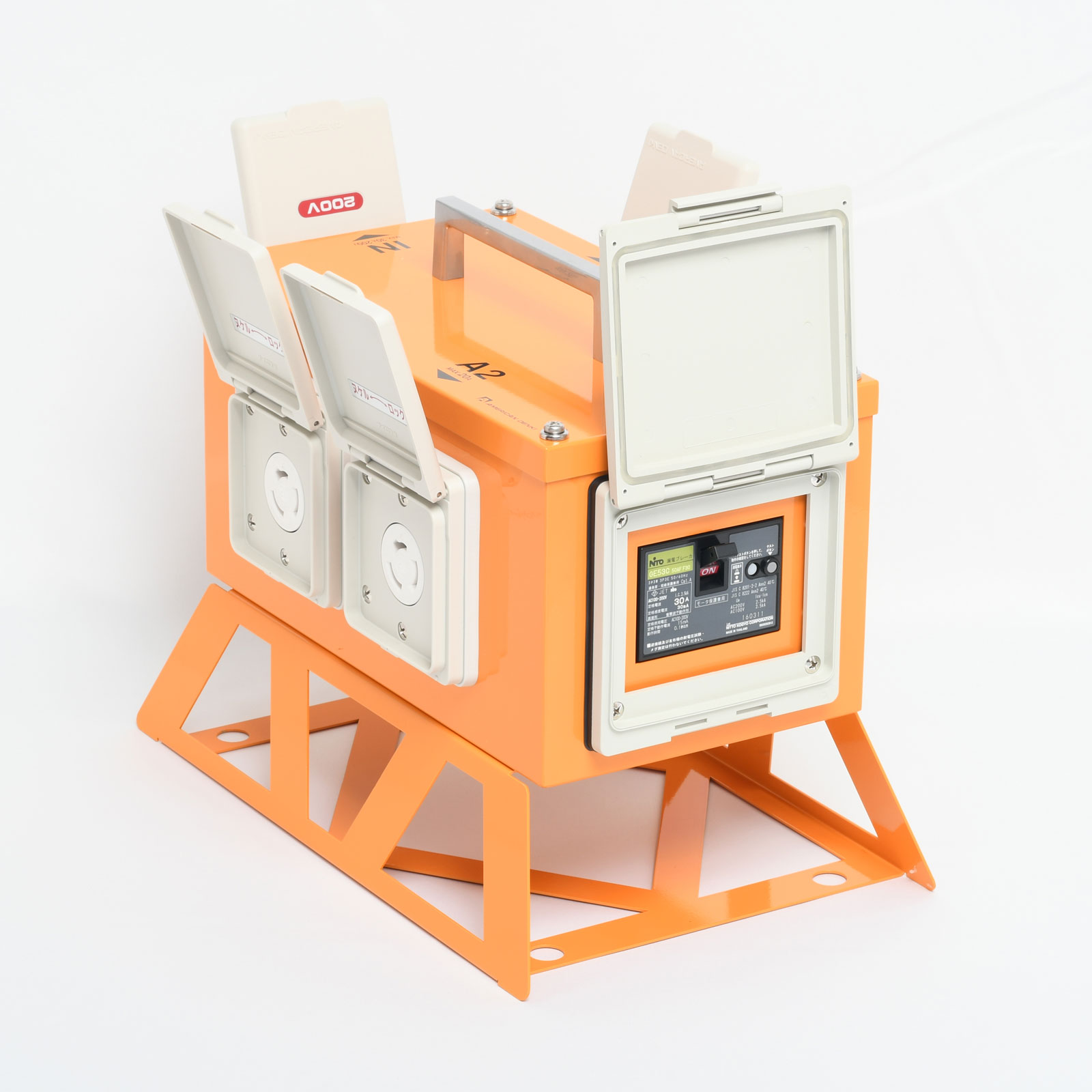

It is a portable dividing box of a strong metallic shell with a structure that can respond to additional power supply and relocation in the field and is also suitable for outdoor use. By connecting connector body to twist locking 30A waterproof flanged inlet on the input side, power is supplied to four clamp locking 20A outlets (A1 ・ A2 ・ B1 ・ B2). It has a 30A leakage breaker not only overcurrent due to overload or short circuit, but also cut off current even when leakage occurs. It has waterproof performance of IP44 (International Protection Code) when not in use (the cover fully closed). Total load must not exceed 30A.
Electrical Appliance and Material Safety Law (PSE) compliant product.
