Home >Products >RACK MOUNT PDU > HKC2650PTAM

HKC2650PTAM

Discontinued

NEMA

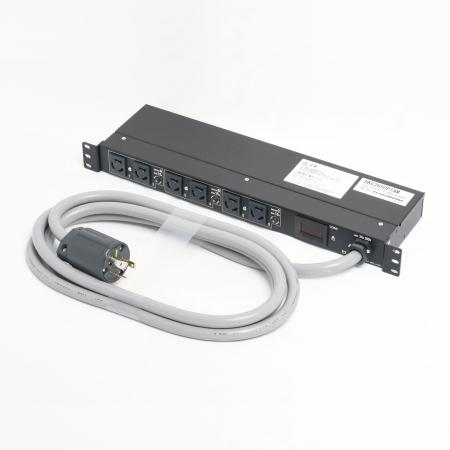

1U Rack Mount PDU, Input 30A/Output NEMA L6-15R with Ammeter

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 250V (NEMA L6-30)

1U Rack Mount PDU, Input 30A/Output NEMA L6-15R with Ammeter

  • Catalog No.

    HKC2650PTAM

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    December, 2023

  • Alternative Product

6 Twist Locking

  • NEMA Configuration No.

    Input: NEMA L6-30<br/>Output NEMA L6-15

  • Color

    Black

  • Weight

    3550g

  • Note

    Input Plug: NEMA L6-30
    VCT5.5mm²×3M
    with 15A Circuit Protector, Digital Ammeter
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

It is a rack mount power distribution unit with 6 NEMA L6-15 outlets and an input plug of NEMA L6-30 (2P, 3W GND 30A 250V), that can be attached to a 19-inch rack 1U size. Each outlet has a 15A circuit protector. Since the attached bracket can attach 5 patterns on both sides of the main body, it supports various power supply environments such as horizontal / vertical / rear / side mounting direction of the rack. The body is made of sturdy steel plate. Group display and number display are printed so that power management can be easily done. Furthermore, a digital AC ammeter that can easily monitor total usage current value is carried. There is a bracket sold separately that can place the chassis inside 40mm of the rack.
Electrical Appliance and Material Safety Law (PSE) compliant product.
