BN20S-IV

Nylon Cord Bushing

Nylon Cord Bushing

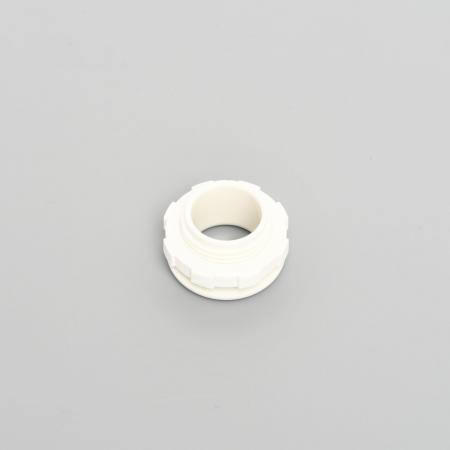

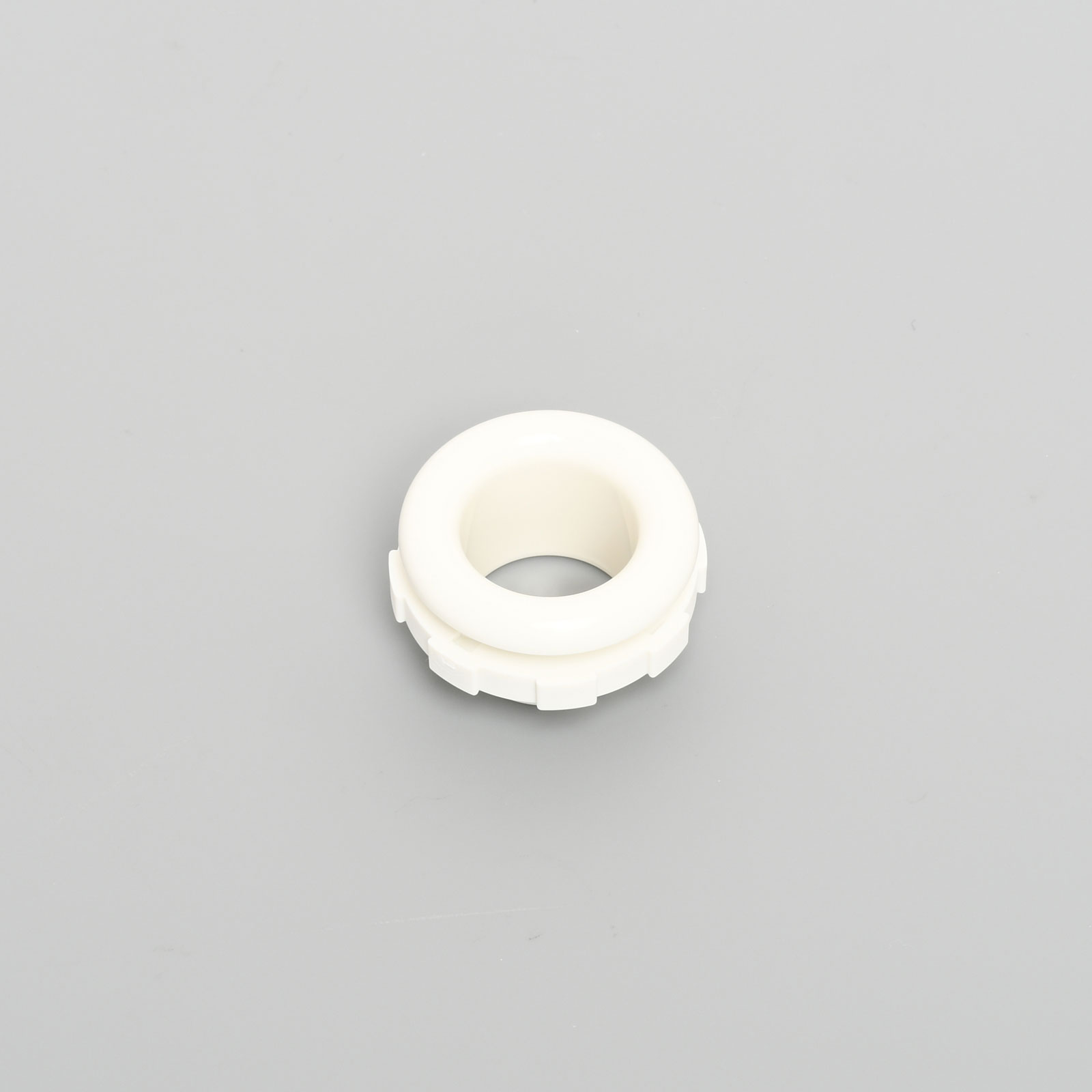

You can see the enlarged image by clicking the image.

Data Sheet Download

Inside Diameter 20, Mounting Dimension 27

Nylon Cord Bushing

  • Catalog No.

    BN20S-IV

  • Price(JPY YEN)

    ¥220

  • Color

    White

  • Body Flammability

    UL94 V-2

  • Weight

    7.9g

  • Note

    Nylon
    RoHS2 Compliant

Feauture

It is a nylon cord bushing excellent in impact resistance that protects the surface of penetrating holes and penetrations (cable or pipe) from damage such as scratches or abrasions.
The nozzle and nut are easy to fit and fix with a only screwing in (one-touch-screw). It can be used in a wide range of applications, such as penetrating holes in boards and concrete walls, equipment around machinery or OA equipment.
It is made of flame-retardant (UL94 V-2) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
