4320-P-L15UL

NEMA

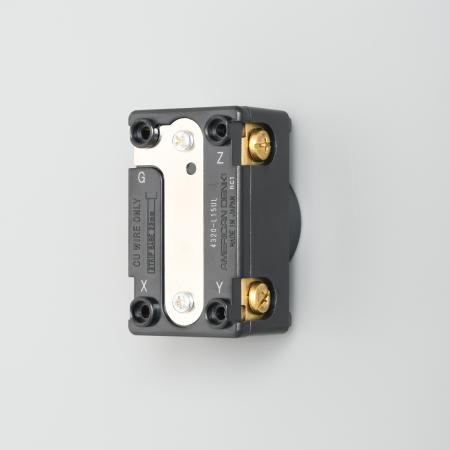

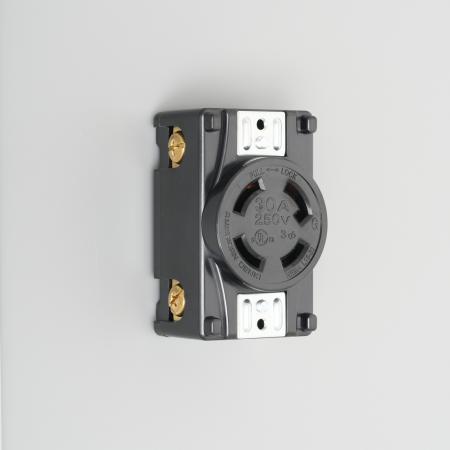

UL Listed and CSA Certified Panel Receptacle

UL Listed and CSA Certified Panel Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 30A 250V (NEMA L15-30)

UL Listed and CSA Certified Panel Receptacle

  • Catalog No.

    4320-P-L15UL

  • Price(JPY YEN)

    ￥5,040

Twist Locking

  • NEMA Configuration No.

    NEMA L15-30

  • Color

    Black

  • Wire Size

    for UL/CSA: 10AWG
    for in Japan: 2.6φ〜3.2φ、5.5mm²

  • Connectivity

    for UL/CSA: Push-in-screw Terminal　|　for in Japan: Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    for in Japan: 5.5-5 (Spade Type)

  • Body Flammability

    UL94 V-0

  • Weight

    136.7g

  • Note

    UL Listed and CSA Certified
    RoHS2 Compliant

Feauture

Panel Receptacle is the contact device which is intended for flush embedded on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
It is receptacle of UL standard and CSA standard approved specification. It has high safety specification such as green terminal screw and body earth.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
