WLP3000

Waterproof

WATERPROOF LIFT COVER PLATE FOR RECEPTACLE

WATERPROOF LIFT COVER PLATE FOR RECEPTACLE

You can see the enlarged image by clicking the image.

Data Sheet Download

1-Gang 1-Receptacle, for 15A/20A Receptacle (Face Dia. φ34.5)

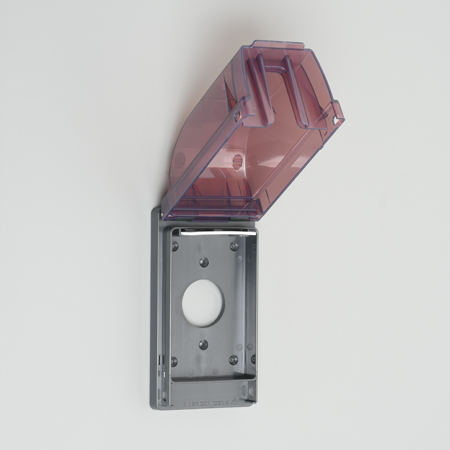

WATERPROOF LIFT COVER PLATE FOR RECEPTACLE

  • Catalog No.

    WLP3000

  • Price(JPY YEN)

    ￥3,490

  • Waterproof IP Rating

    IPX3 Conforming Product

  • Color

    Brown (Clear Molded)

  • Body Flammability

    UL94 V-0

  • Note

    for 1 Gang
    with Plate Screw, LB-S Sticker (Rated Voltage Display)
    RoHS2 Compliant

Feauture

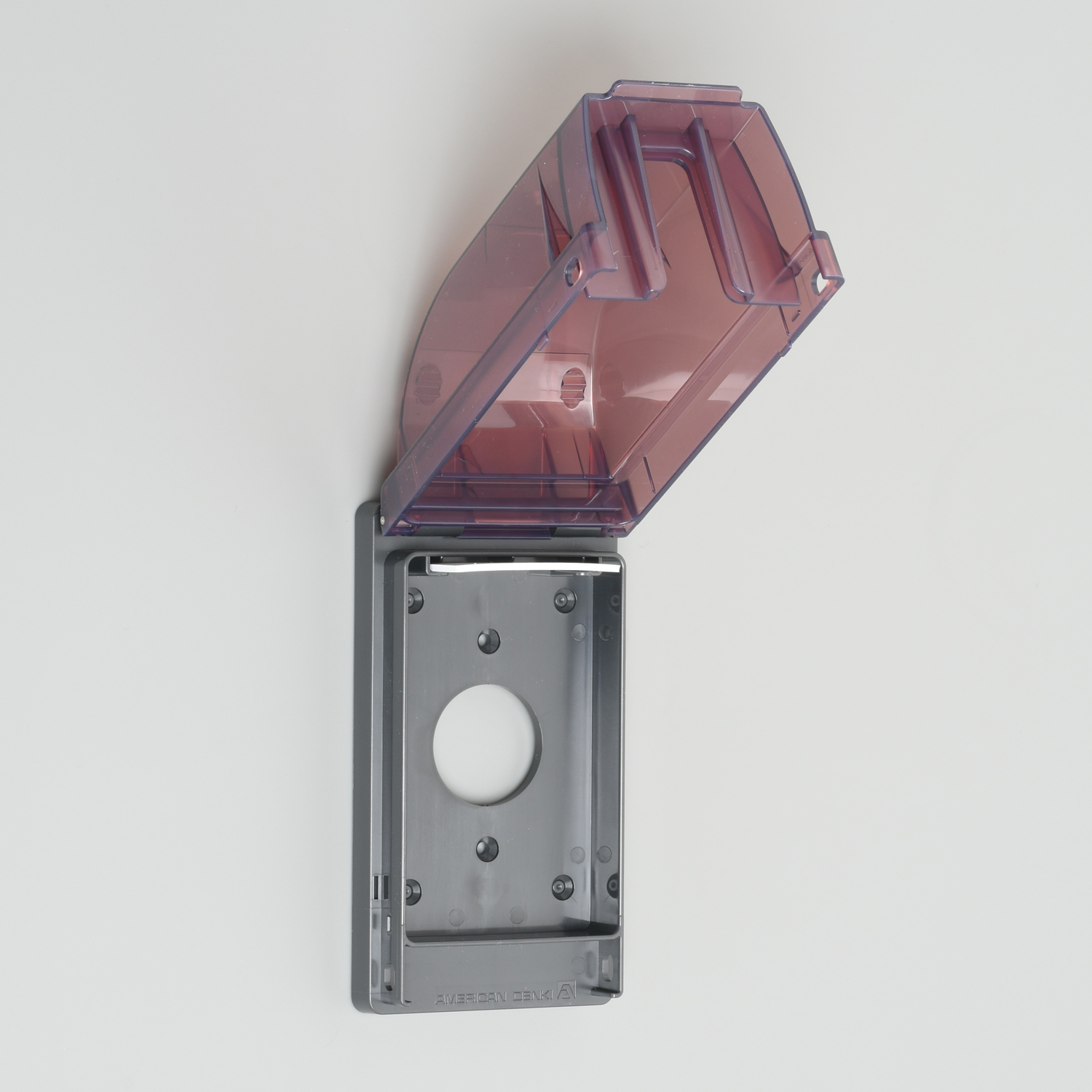

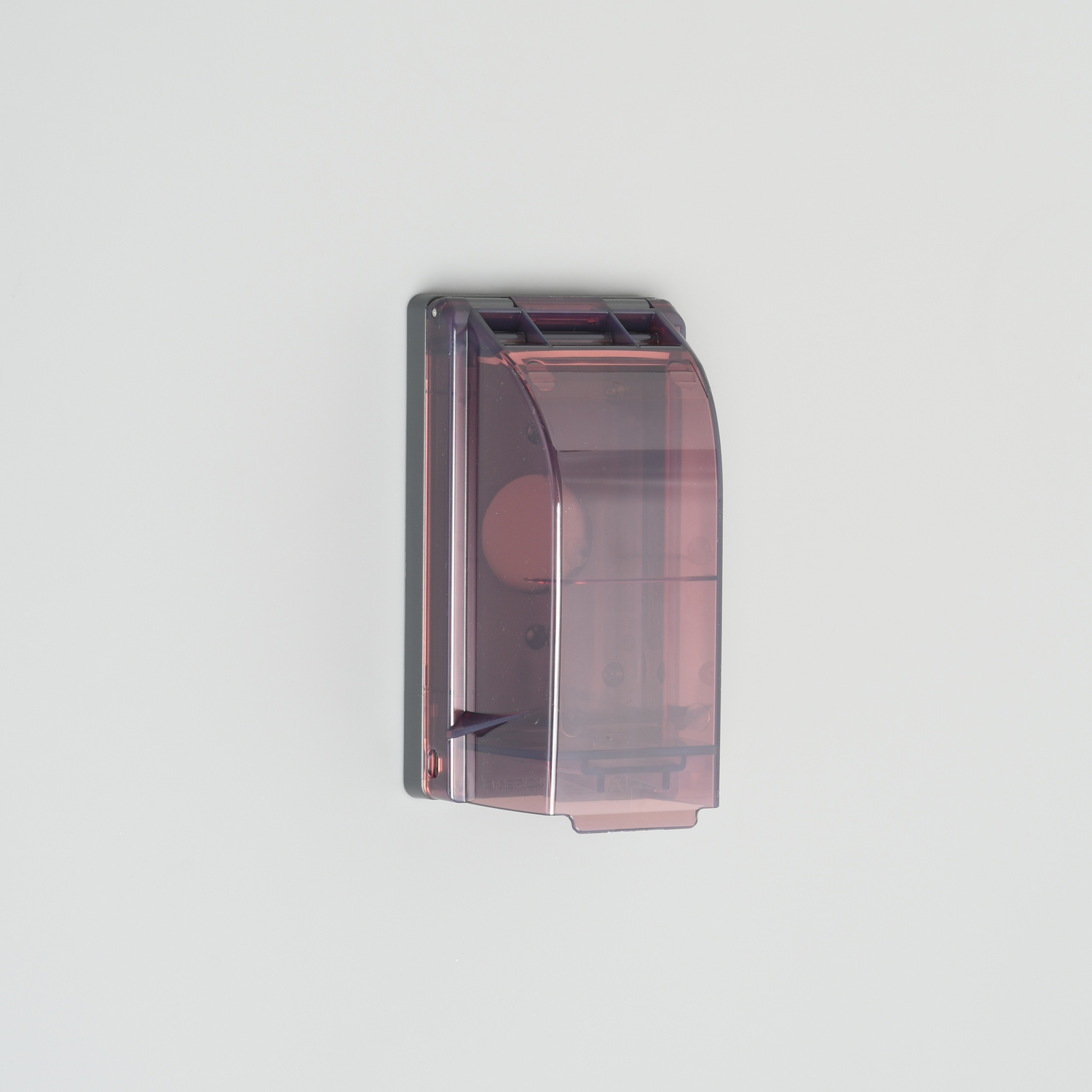

It is a openable cover plate for L-shaped plug that can be attached to a single twist locking receptacle (diameter: 34.5). The cover can be opened and closed even when in use. When the cover is fully closed, it is equivalent to IPX3 based on JIS C 0920 (protection class by electrical machine equipment shell). When in use, the cover can be stopped at the fully open position (120 °). When fully closed, it can be locked easily so that it does not open easily due to vibration. The plate body and cover material has heat resistant and tracking resistant, and uses a flame-retardant (UL94 V-2 or higher) ultra high strength resin polycarbonate that does not contain harmful substances. The cover is clear molded in brown, so you can check the connection status of the L-shaped plug even when it is closed. The included rubber blank piece can be put in the insertion slot on the bottom of the cover to close the opening when the L-type plug is not connected (equivalent to dust and waterproof protection IP44).
