2117

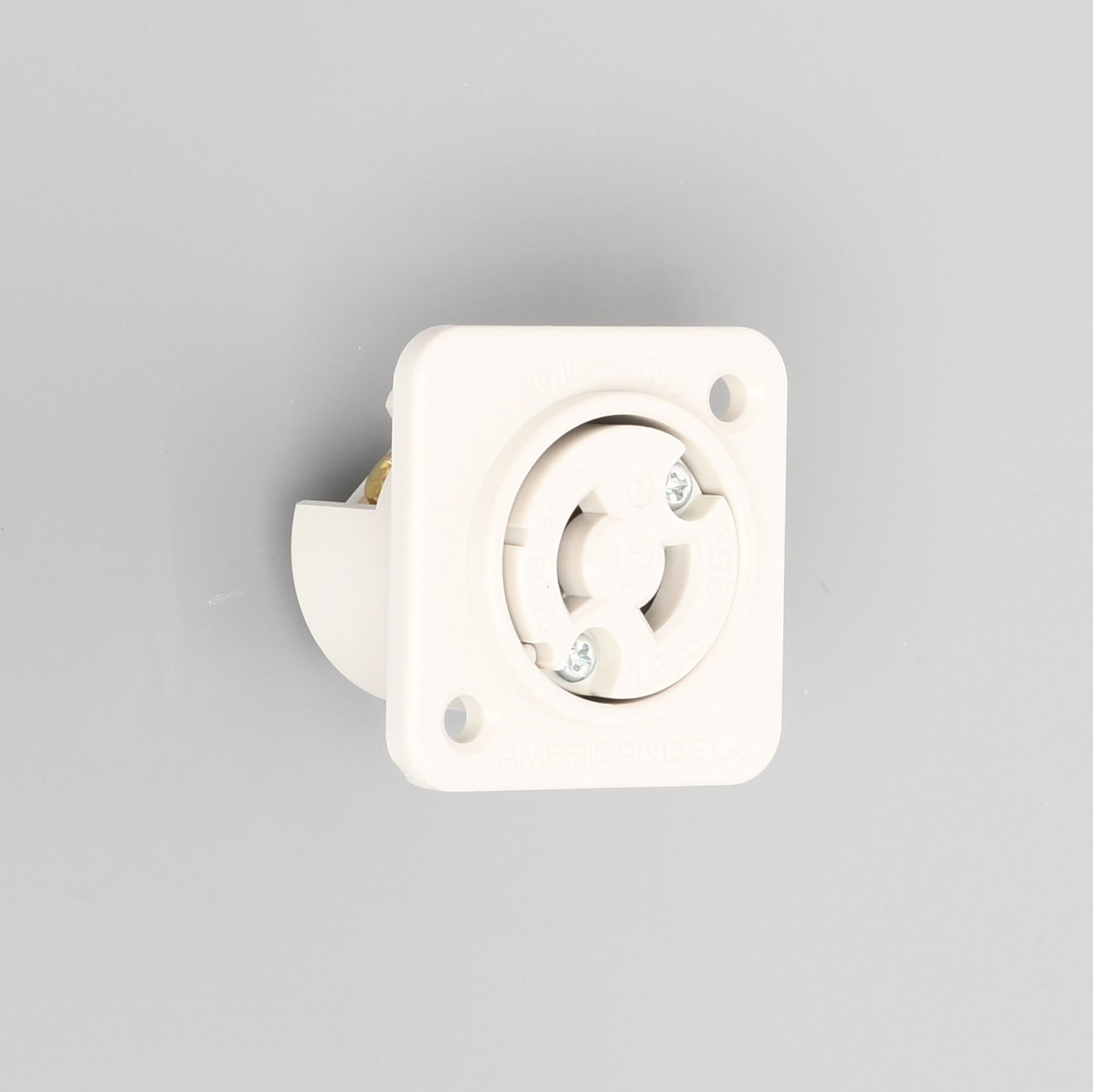

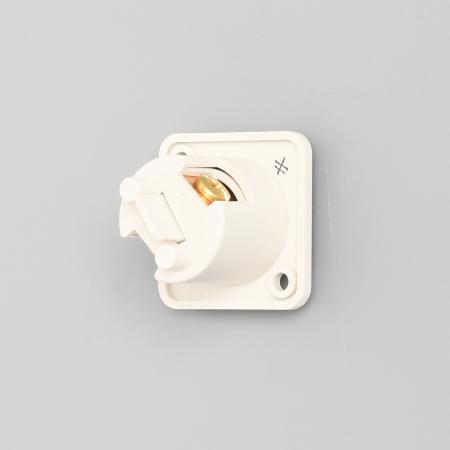

Panel Mount Outlet

Panel Mount Outlet

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 15A 125V

Panel Mount Outlet

  • Catalog No.

    2117

  • Price(JPY YEN)

    ￥760

Twist Locking

  • Color

    White

  • Wire Size

    1.6φ〜2φ、2mm², 3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    23.1g

  • Note

    RoHS2 Compliant

Feauture

Panel Mount Outlet is the contact device which is intended for flush embedded on an appliance or equipment at the minimum size, and which is intended to establish electrical connection with an inserted plug.
It can be installed side by side and can be installed from either the front or back side of the board surface.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
