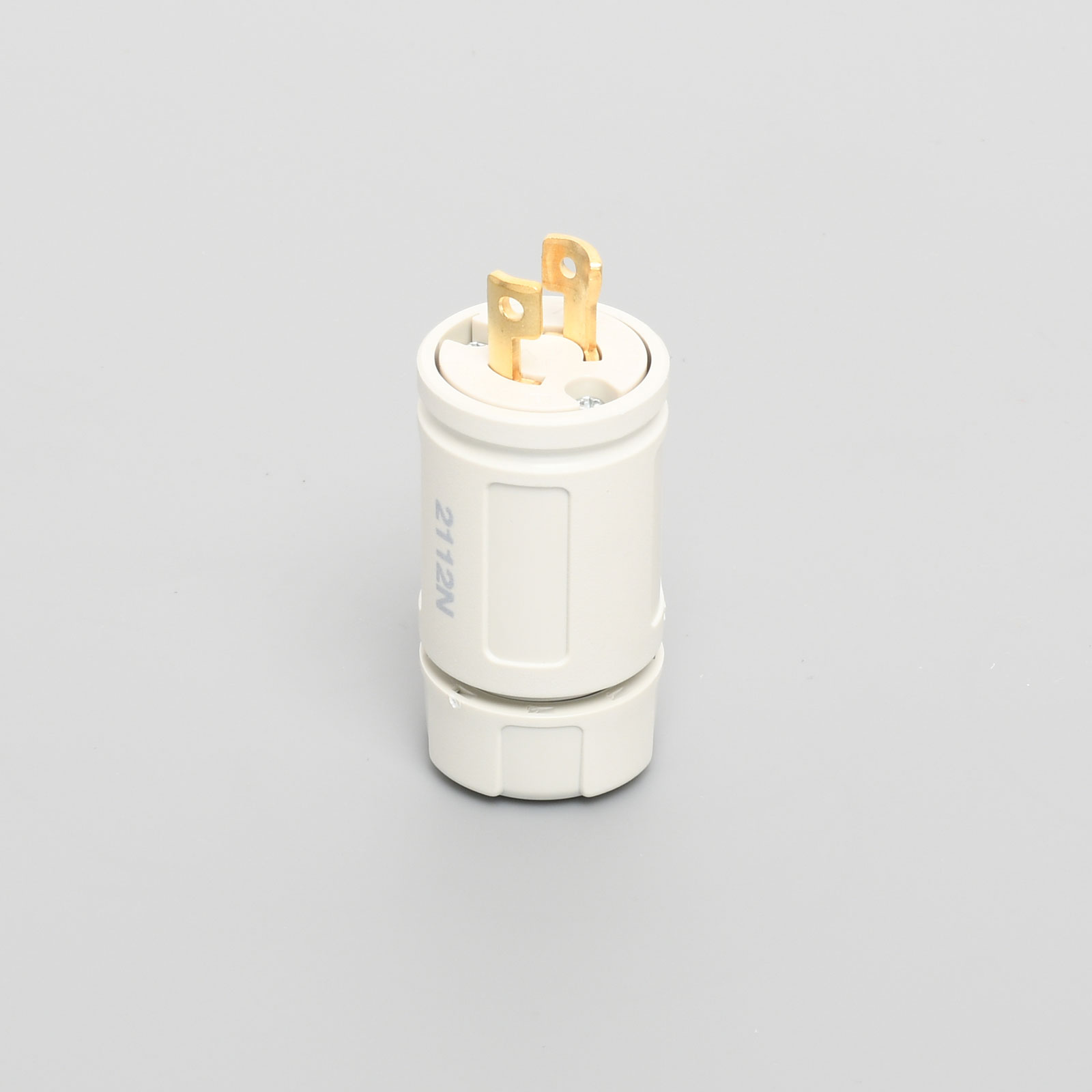

2112N-IV

Waterproof

Plug (Nylon Housing)

Plug (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 15A 125V

Plug (Nylon Housing)

  • Catalog No.

    2112N-IV

  • Price(JPY YEN)

    ￥740

Twist Locking

  • Waterproof IP Rating

    IP64 Equivalent Product (with Waterproof Coupler Z0351)

  • Color

    White

  • Wire Size

    2PNCT/VCT 2mm²、3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    31.0g

  • Note

    Nylon Housing
    Scheduled to be discontinued on January 20, 2027
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

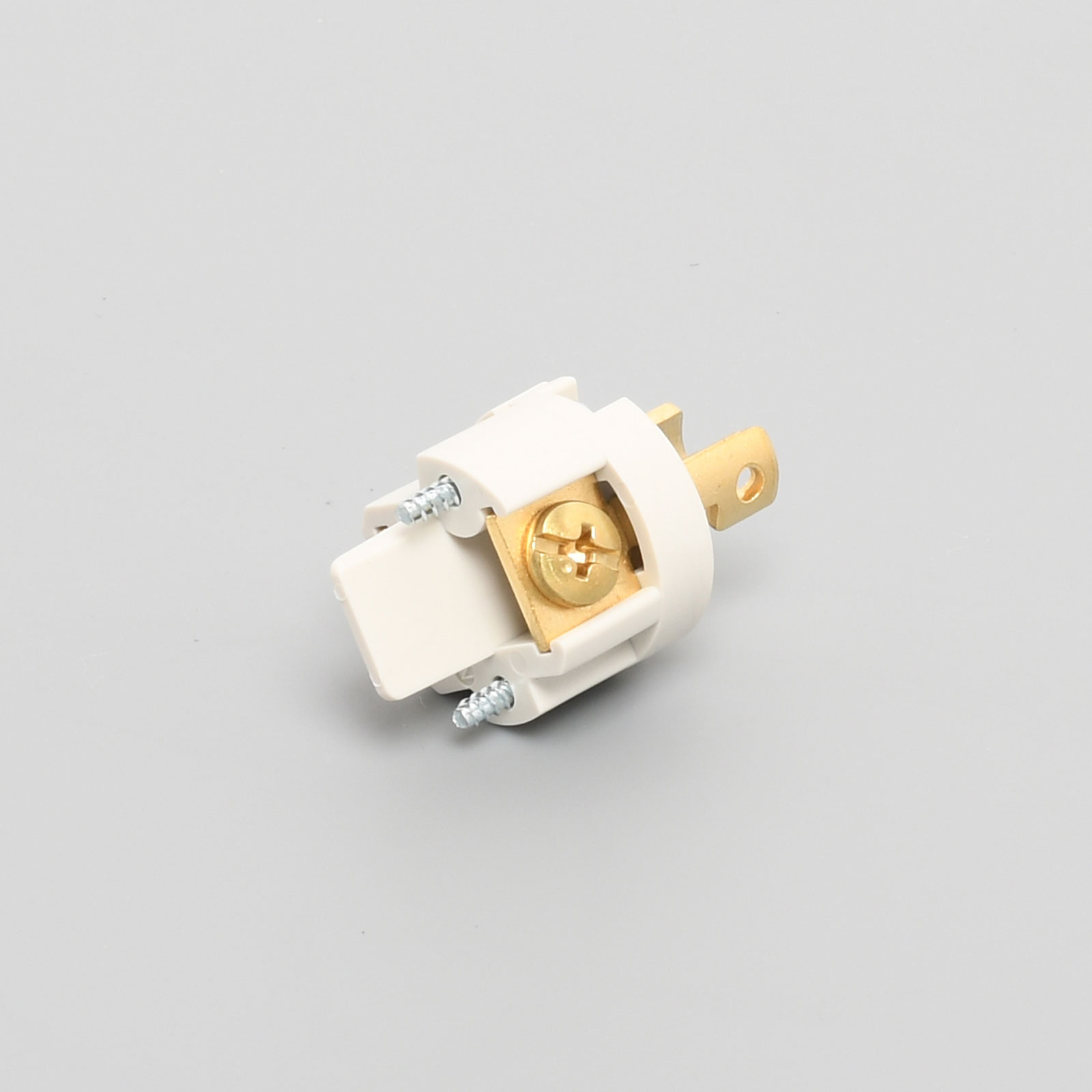

Connectivity is "crimp terminal" tightening the terminal screw on the side.
It is a combination of optional connector body (2114N-IV) and waterproof coupler (Z0351), and it can be used as a device with IP44 dust and waterproof performance when used.
Electrical Appliance and Material Safety Law (PSE) compliant product.
