2114N-IV

Waterproof

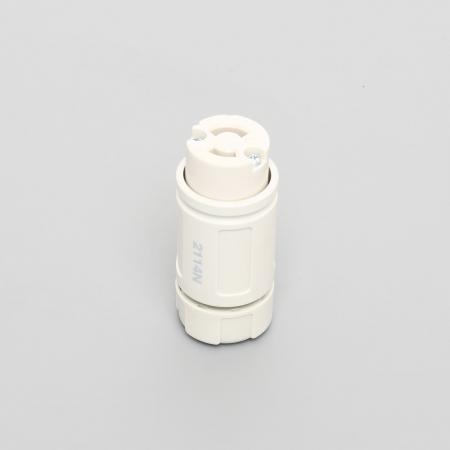

Connector Body (Nylon Housing)

Connector Body (Nylon Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 15A 125V

Connector Body (Nylon Housing)

  • Catalog No.

    2114N-IV

  • Price(JPY YEN)

    ￥850

Twist Locking

  • Waterproof IP Rating

    IP64 Equivalent Product (with Waterproof Coupler Z0351)

  • Color

    White

  • Wire Size

    2PNCT/VCT 2mm²、3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    32.6g

  • Note

    Nylon Housing
    Scheduled to be discontinued on January 20, 2027
    RoHS2 Compliant

*The dust and waterproof performance (IP code) in the notation is in accordance with the test method of JIS C 0920. For details, please refer to "Product performance" at the bottom.

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

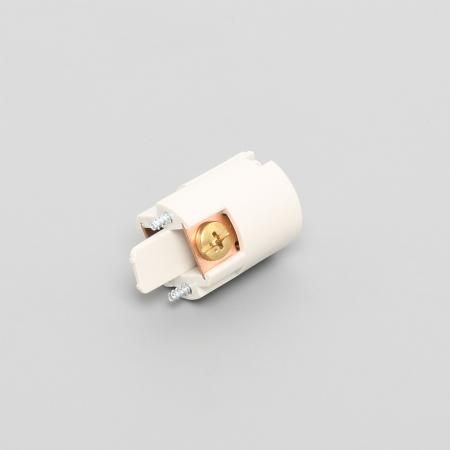

Connectivity is "crimp terminal" tightening the terminal screw on the side.
It is a combination of optional plug (2112N-IV) and waterproof coupler (Z0351), and it can be used as a device with IP44 dust and waterproof performance when used.
Electrical Appliance and Material Safety Law (PSE) compliant product.
