2322R

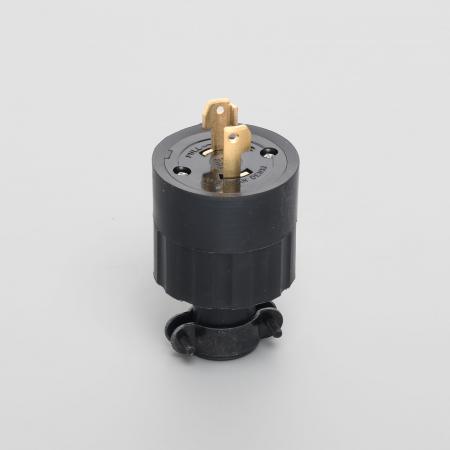

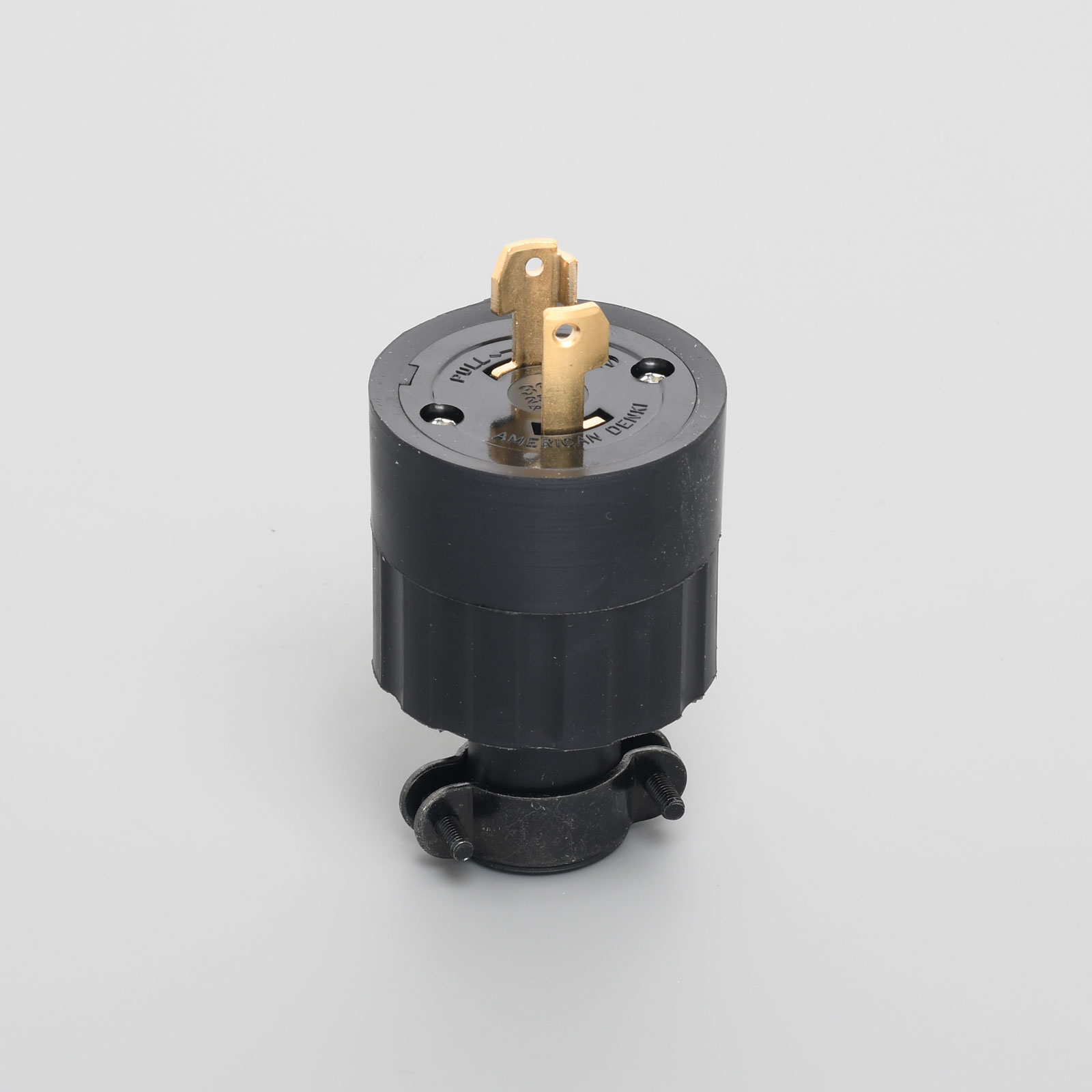

Plug (Rubber Housing)

Plug (Rubber Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 30A 250V

Plug (Rubber Housing)

  • Catalog No.

    2322R

  • Price(JPY YEN)

    ¥2,700

Twist Locking

  • Color

    Black

  • Wire Size

    2PNCT/VCT 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5

  • Weight

    165.0g

  • Note

    Rubber Housing
    Scheduled to be discontinued on January 20, 2027
    RoHS2 Compliant

Feauture

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.

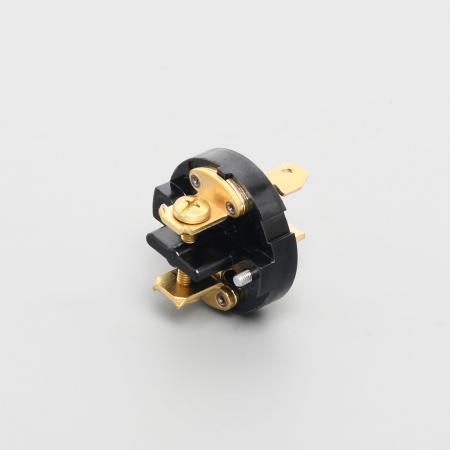

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
