G50

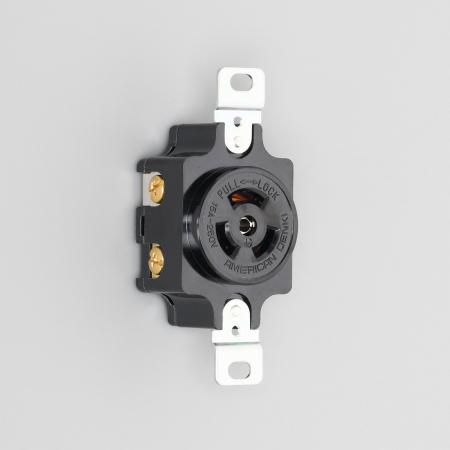

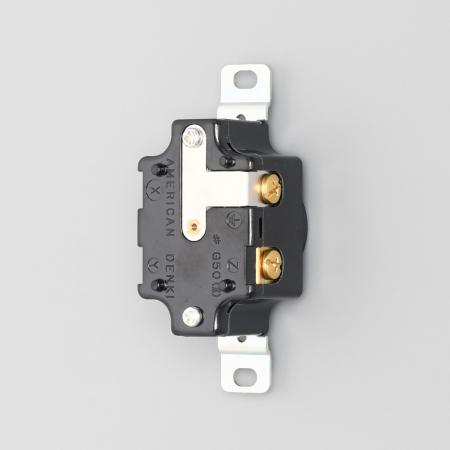

Receptacle

Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 15A 250V

Receptacle

  • Catalog No.

    G50

  • Price(JPY YEN)

    ￥2,200

Twist Locking

  • Color

    Black

  • Wire Size

    1.6φ〜2φ、2mm²、3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Weight

    80.6g

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Electrical Appliance and Material Safety Law (PSE) compliant product.
