SLP3000

Waterproof

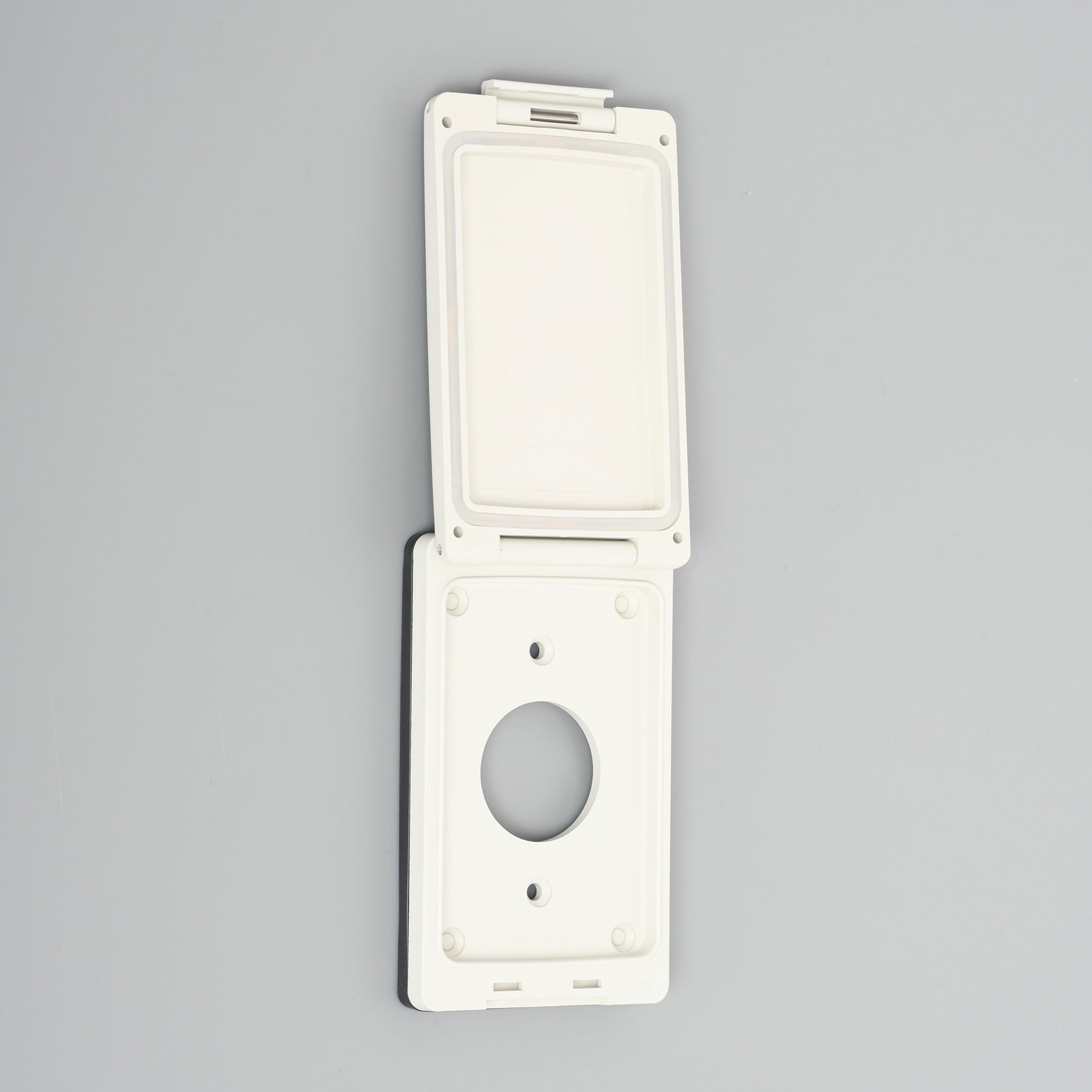

Sealock Plate: Dust & Jet Proof Lift Cover Plate [White Color]

Sealock Plate: Dust & Jet Proof Lift Cover Plate [White Color]

You can see the enlarged image by clicking the image.

Data Sheet Download

1-Gang 1-Receptacle, for 15A/20A Receptacle (Face Dia. φ34.5)

Sealock Plate: Dust & Jet Proof Lift Cover Plate [White Color]

  • Catalog No.

    SLP3000

  • Price(JPY YEN)

    ￥2,400

  • Waterproof IP Rating

    IP65 Conforming Product

  • Color

    White

  • Body Flammability

    UL94 V-0

  • Weight

    111.9g

  • Note

    for 1 Gang
    with Plate Screw, LB-S Sticker (Rated Voltage Display)
    RoHS2 Compliant

*When using it as a dust and jet proof specification, be sure to install it using "mounting hole for dust and jet proof". Please note that you can not obtain the function for dust and jet proof by installation only "mounting hole for receptacle".

Feauture

It is a cover opening-closing type plate that can be attached to a single receptacle (diameter: 34.5). Depending on the installation method, when cover is fully closed, it will be dust and jet proof specification IP65, equivalent products based on JIS C 0920 (protection class by electrical machine equipment shell). In use, it can be stopped at the cover full-open position (180°).The material of the plate and cover are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
