140

Discontinued

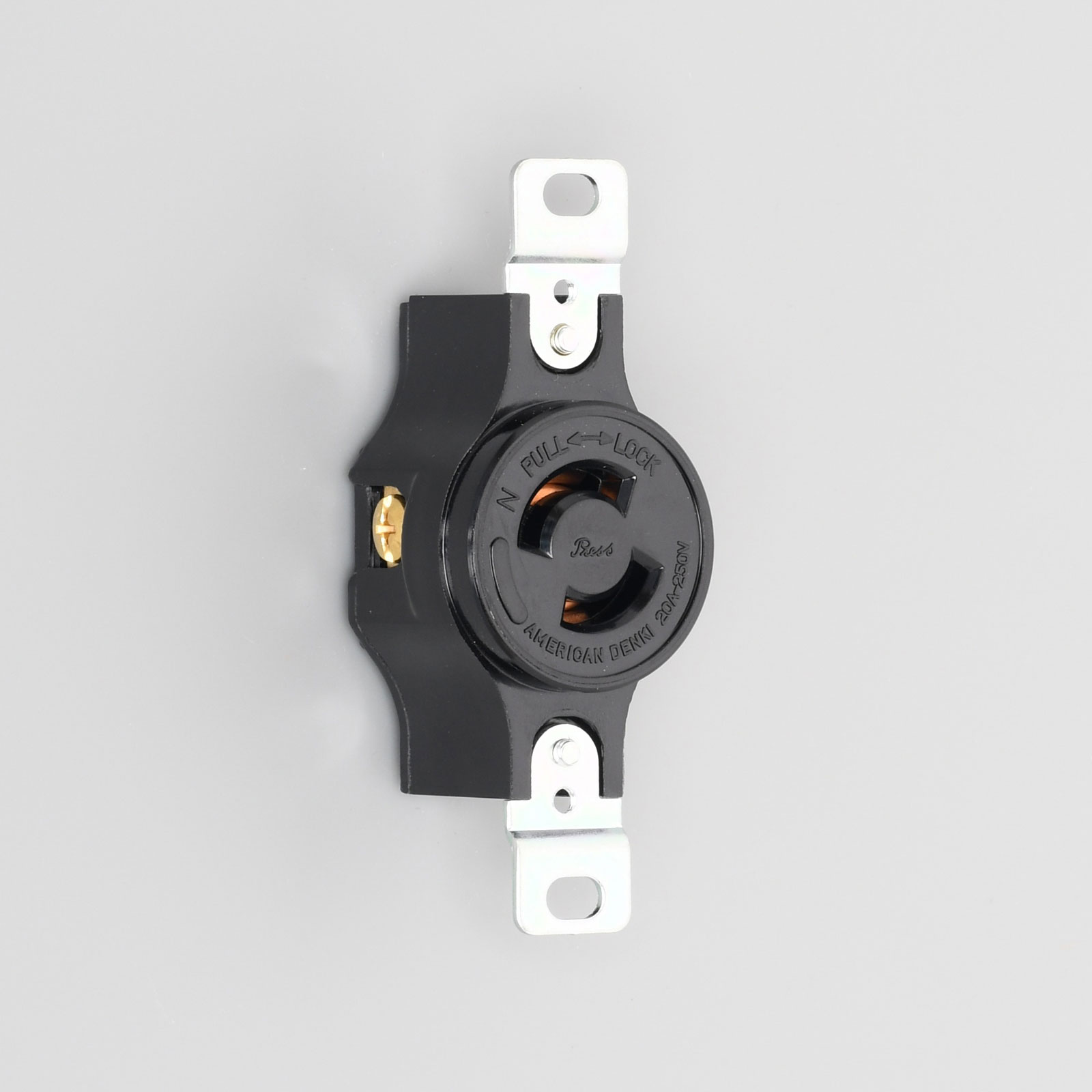

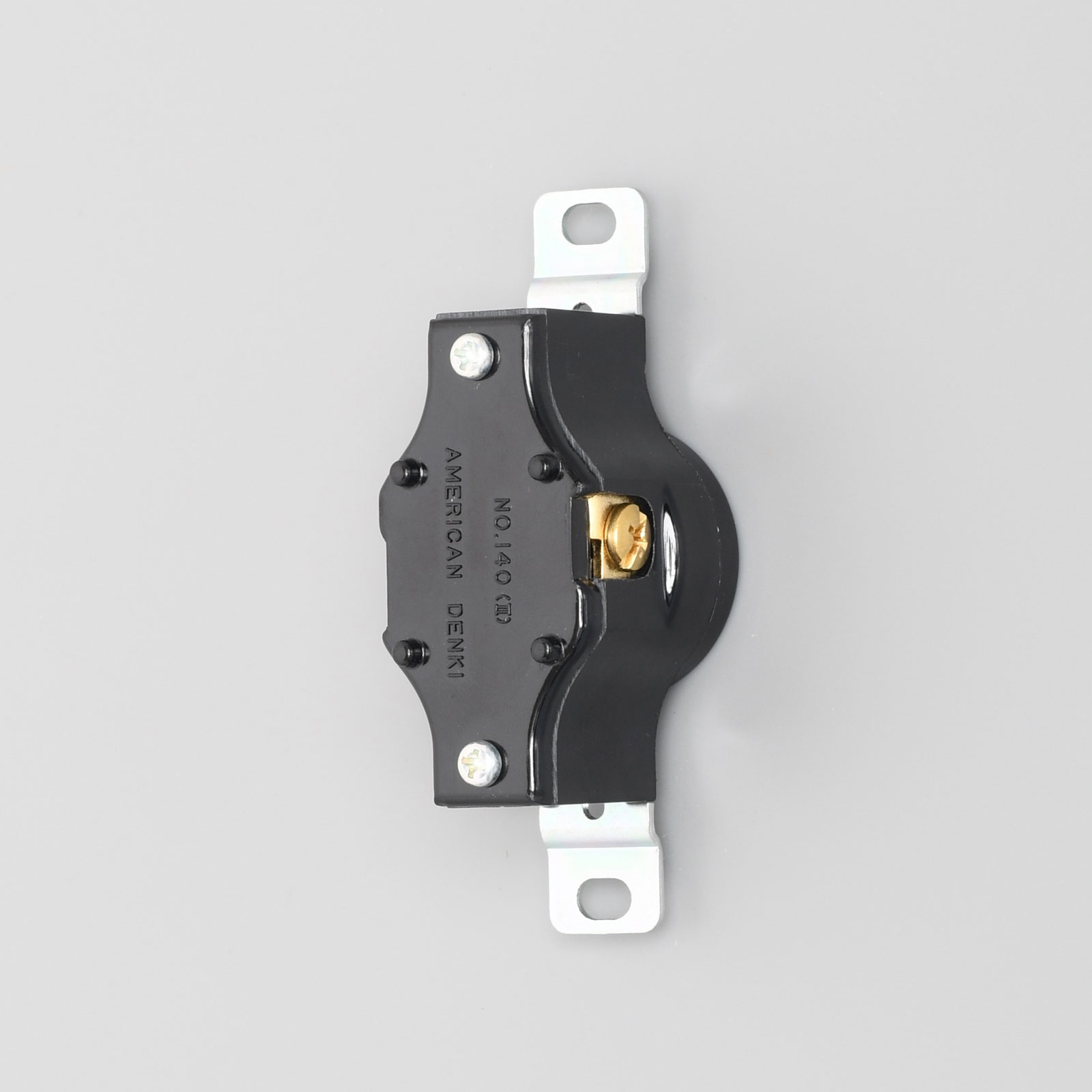

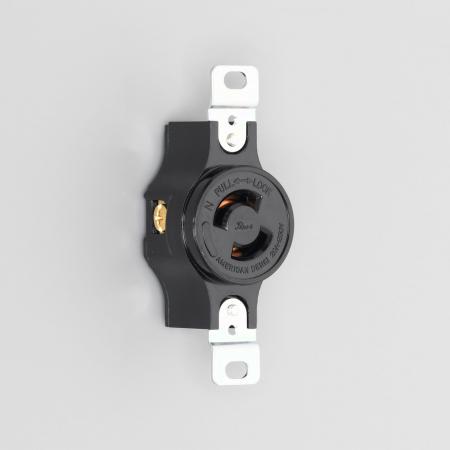

Receptacle

Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 2-Wire 20A 250V

Receptacle

  • Catalog No.

    140

  • Price(JPY YEN)

    ￥0

  • Discontinued Date

    February 20th, 2025

  • Alternative Product

    2220

Twist Locking

  • Color

    Black

  • Wire Size

    2φ〜2.6φ、3.5mm²、5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R3.5-4、R5.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    68.0g

  • Note

    Discontinued on February 20th, 2025
    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Electrical Appliance and Material Safety Law (PSE) compliant product.
