4664E

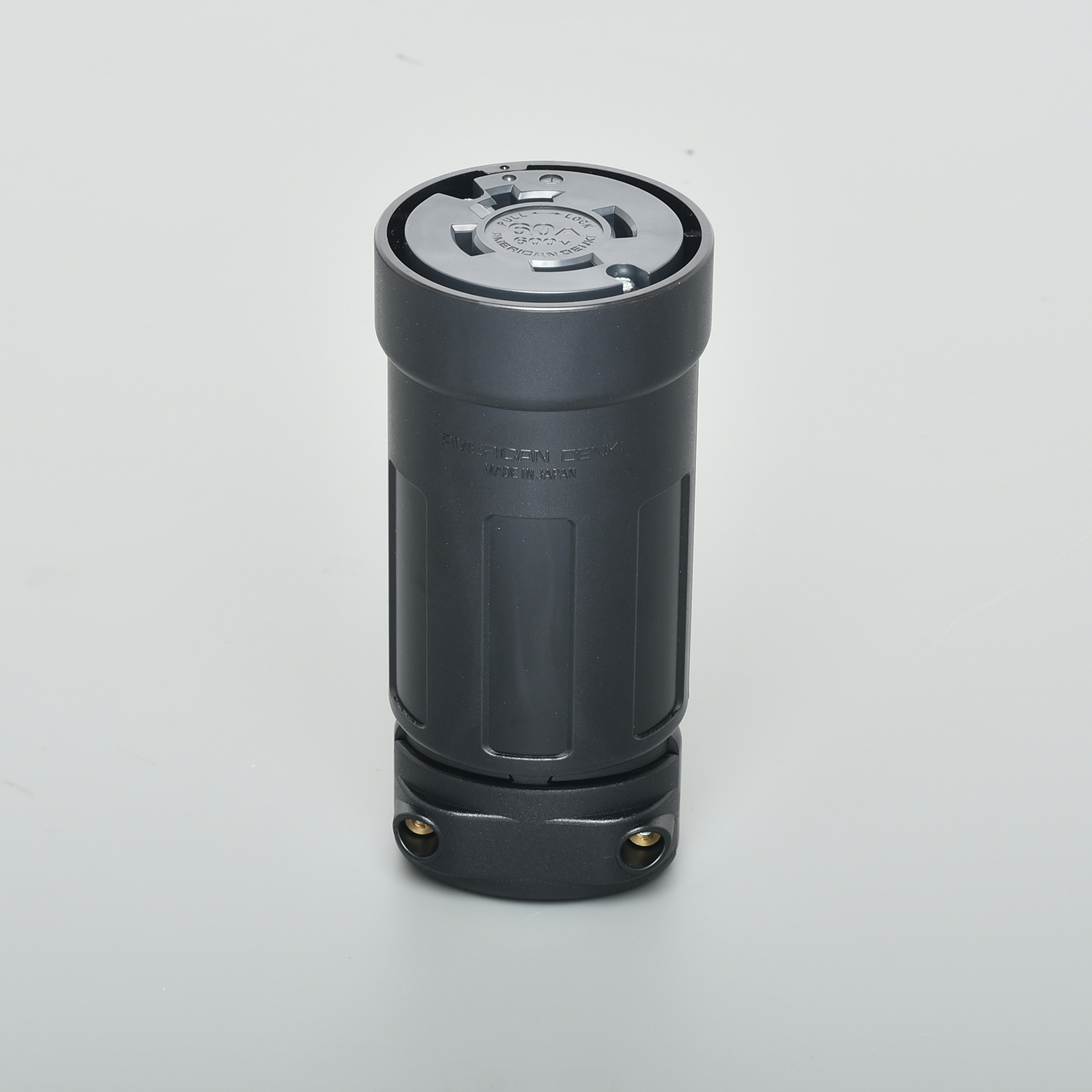

Connector Body (Polycarbonate Housing)

Connector Body (Polycarbonate Housing)

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 60A 600V

Connector Body (Polycarbonate Housing)

  • Catalog No.

    4664E

  • Price(JPY YEN)

    ¥9,520

Twist Locking

  • Color

    Black

  • Wire Size

    2CT/VCT 14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R14-6

  • Body Flammability

    UL94 V-0

  • Weight

    309.5g

  • Note

    Polycarbonate Housing
    RoHS2 Compliant

Feauture

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.
By combining with a waterproof plug (3662RW) or a waterproof flanged inlet (3665RW), it is possible to obtain dust proof and waterproof performance.
Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side. By covering the cable entry with a insulation cover (heat shrinkable type), waterproof performance can be improved.
*Although this product is a waterproof type instrument, it can be combined with any non-waterproof type instrument such as the 3622R (waterproof performance will be lost).
