4320

Receptacle

Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

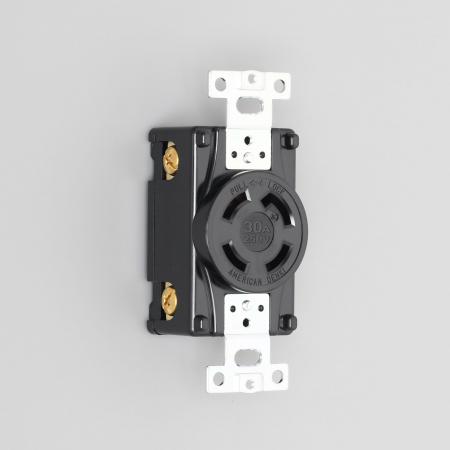

3-Pole 4-Wire Grounding 30A 250V

Receptacle

  • Catalog No.

    4320

  • Price(JPY YEN)

    ¥2,000

Twist Locking

  • Color

    Black

  • Wire Size

    2.6φ~3.2φ, 5.5mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5

  • Body Flammability

    UL94 V-0

  • Weight

    158.2g

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.

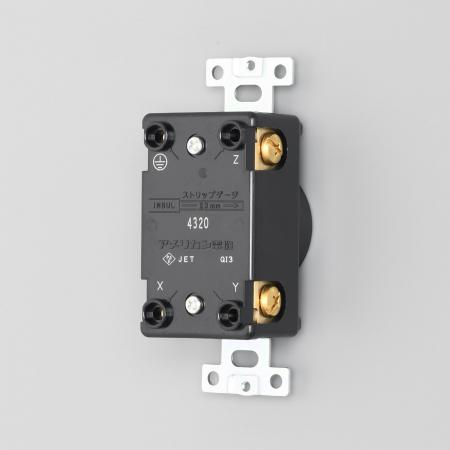

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.
