Home >Products >RECEPTACLE (SOCKET) > 3110CD
3110CD
2-Pole 3-Wire Grounding 15A 125V

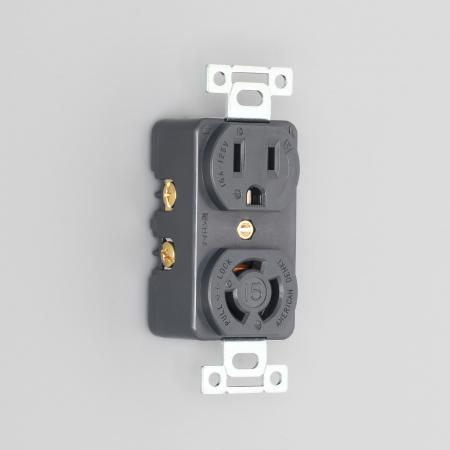

Duplex Receptacle (Combination)
-
Catalog No.
3110CD
-
Price(JPY YEN)
￥0
-
Discontinued Date
October, 2022
-
Alternative Product
3110HCD-BK
Combination
(Straight Blade/Twist Locking)
-
Color
Black
-
Wire Size
1.6φ〜2φ、2mm²
-
Connectivity
Crimping Terminal, Push-in-screw Terminal
-
Crimp Terminal
R2-4
-
Body Flammability
UL94 V-0
-
Weight
122.6g
-
Note
Combination
Discontinued on October 20th, 2022
RoHS2 Compliant
Feauture
Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.It is combination receptacle with two different outlets.

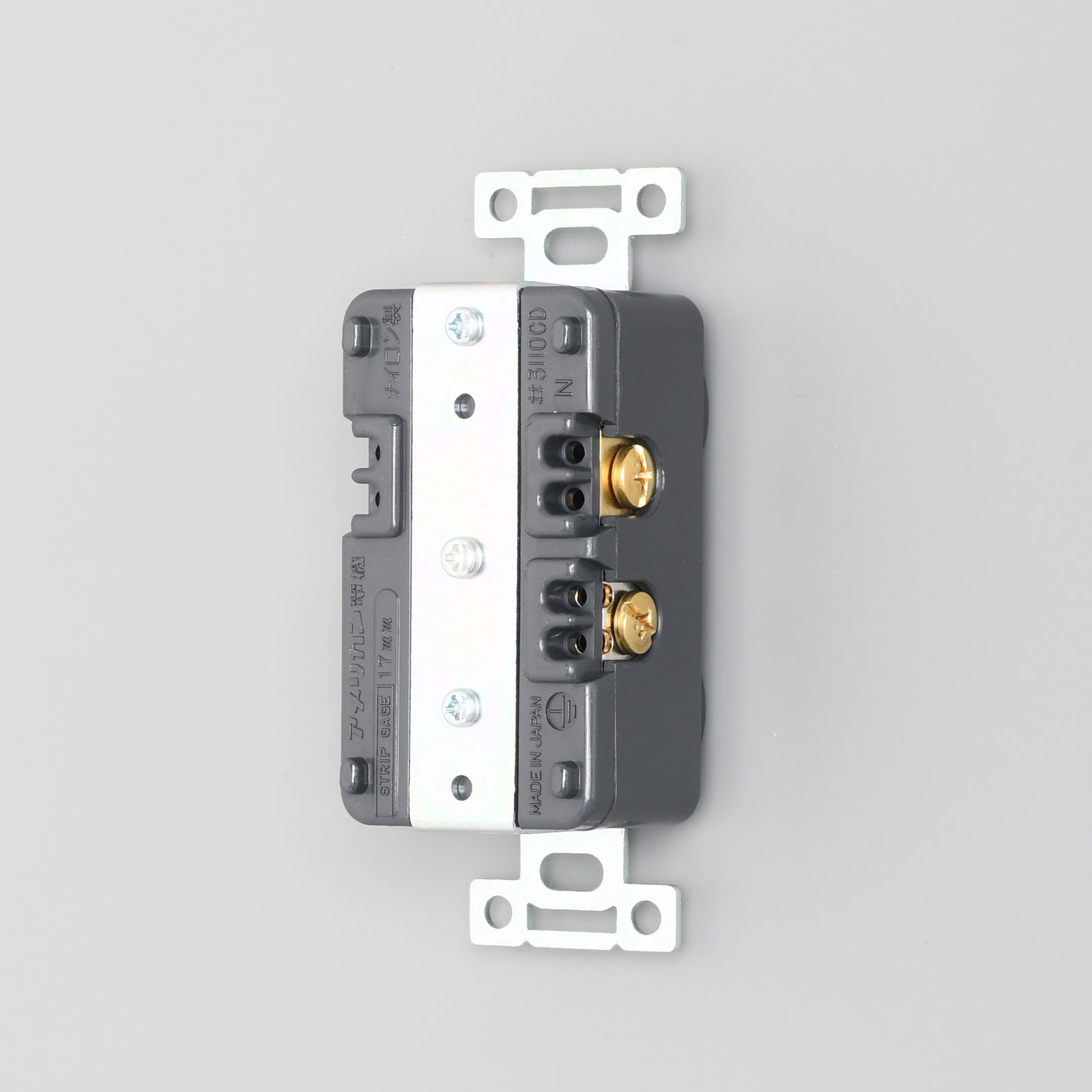

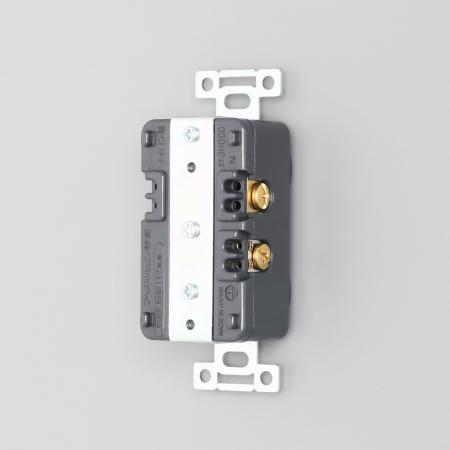

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
