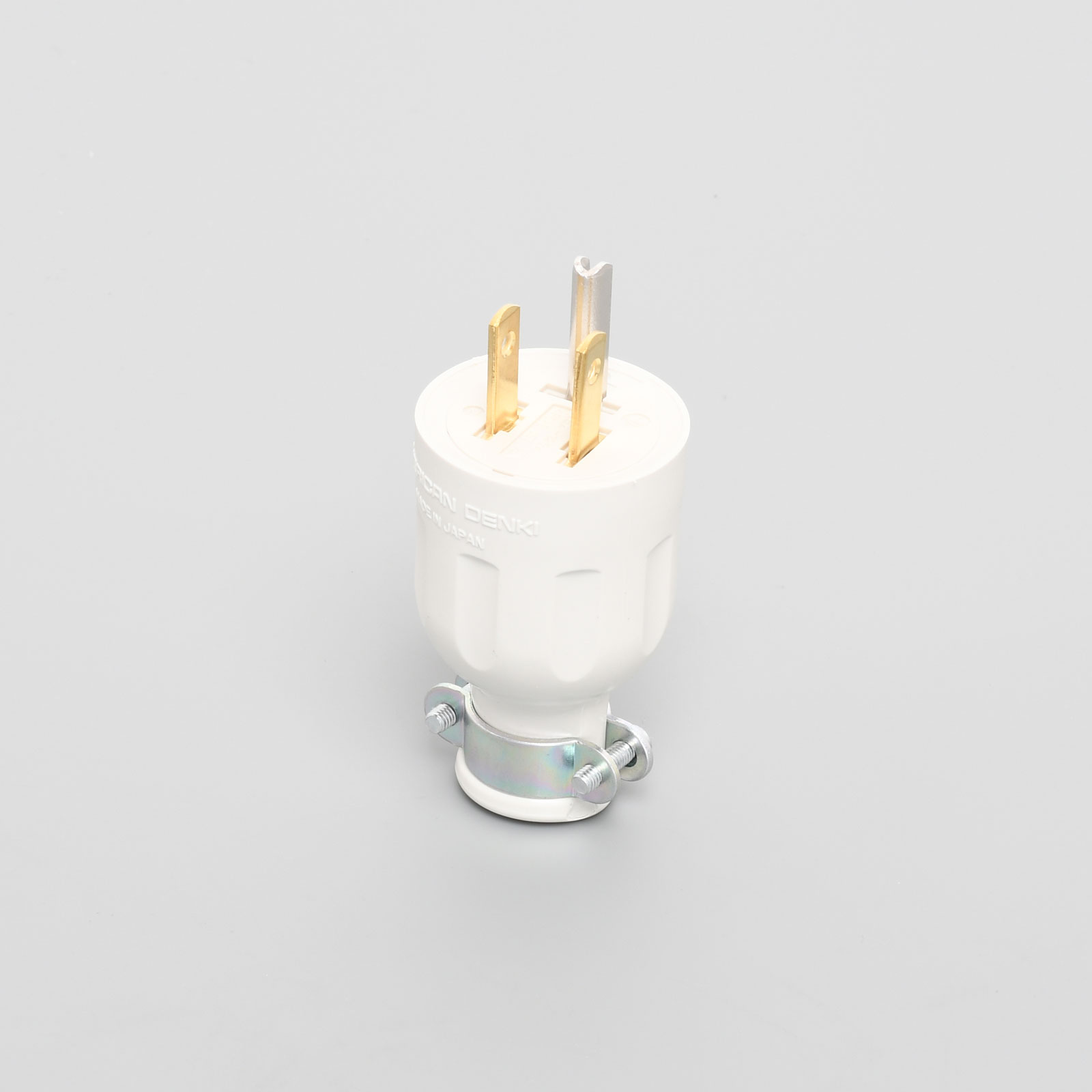

7112GR-IV-New
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
Plug (Rubber Housing)
-
Catalog No.
7112GR-IV-New
-
Price(JPY YEN)
￥850
Straight Blade
-
NEMA Configuration No.
NEMA 5-15
-
Color
White
-
Wire Size
2PNCT/VCT 2mm²、3.5mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R2-4、R3.5-4
-
Body Flammability
UL94 V-0
-
Weight
53.7g
-
Note
Rubber Housing
RoHS2 Compliant
Feauture
Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of flame-retardant (UL94 V-1) soft rubber.

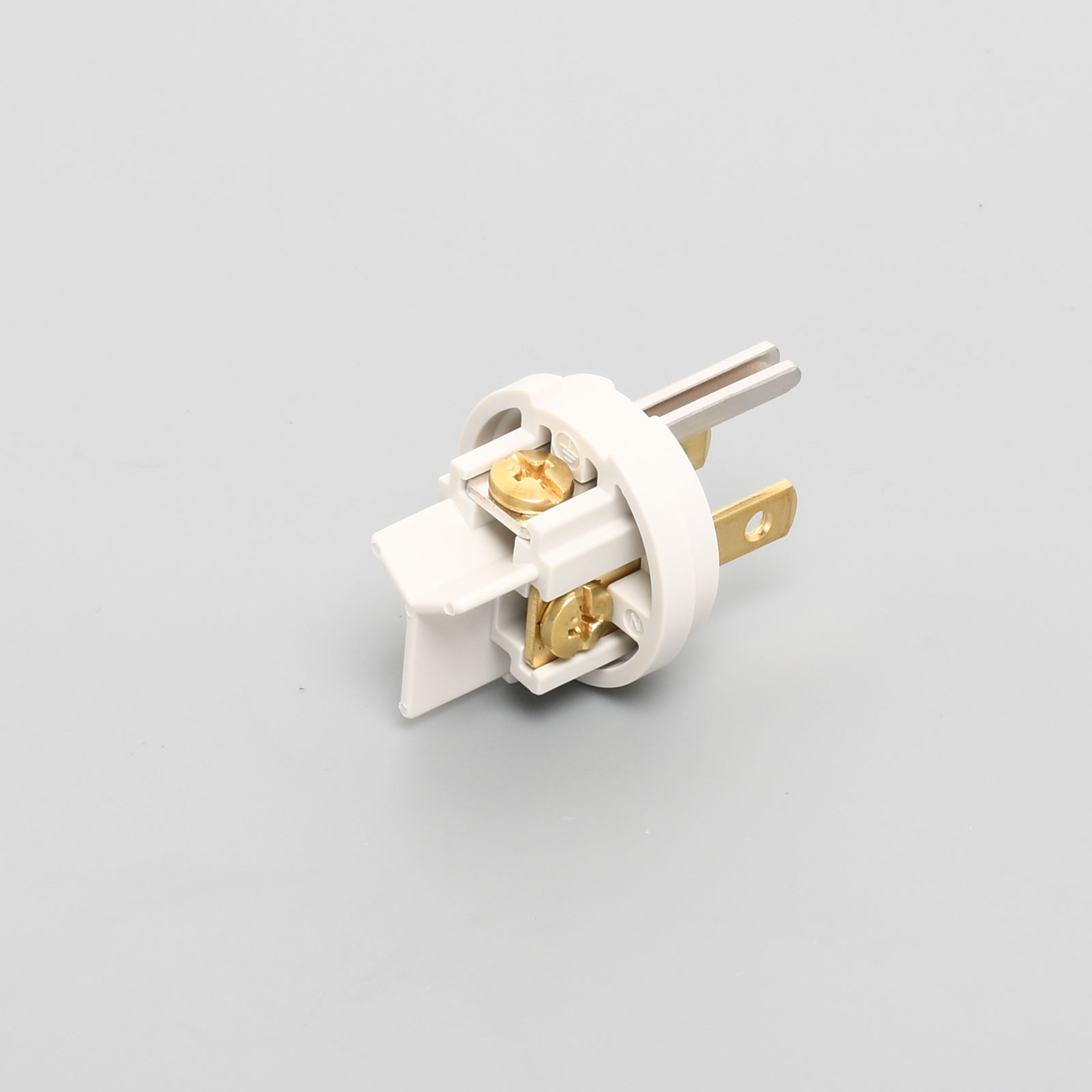

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
