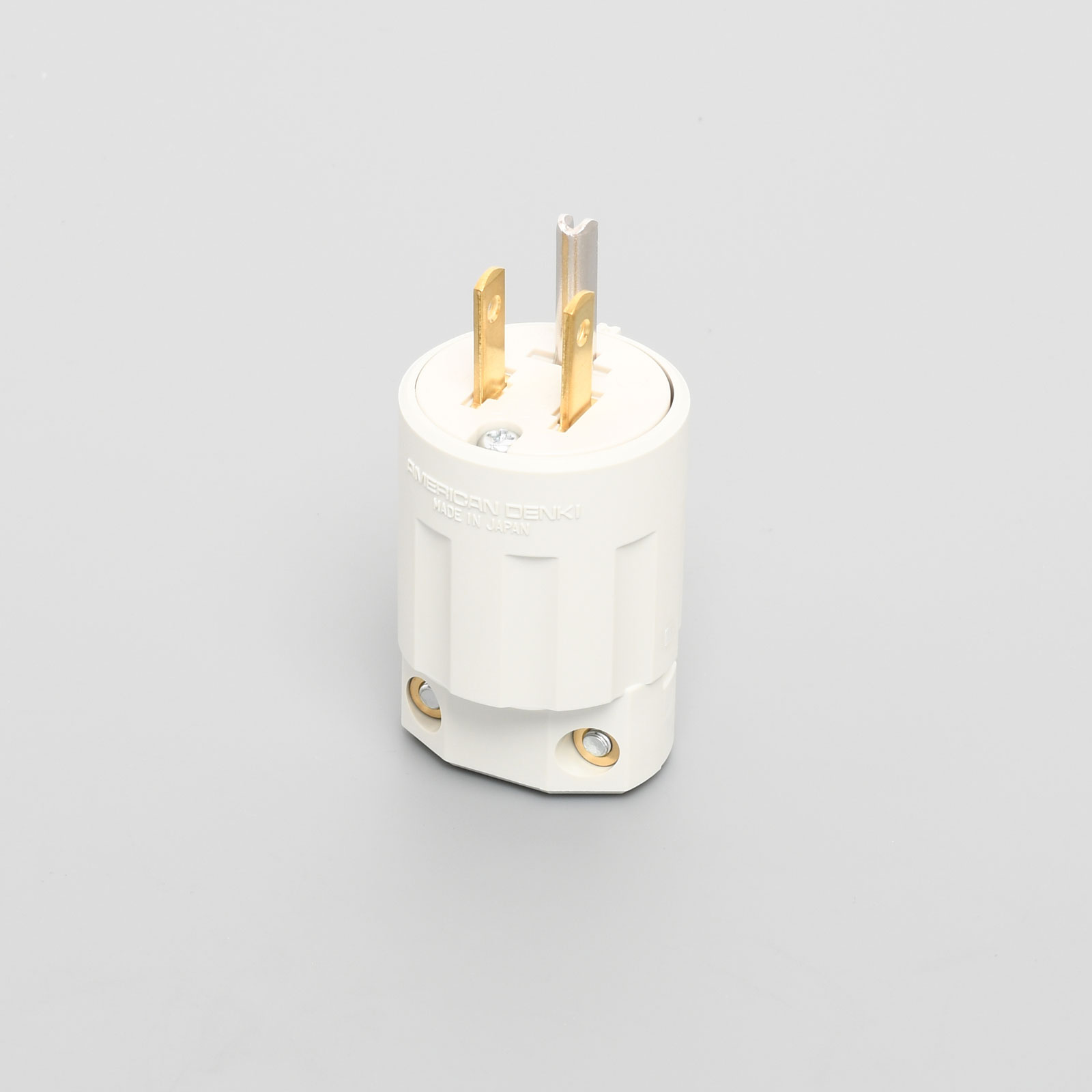

7112GN-IV
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
Plug (Nylon Housing)
-
Catalog No.
7112GN-IV
-
Price(JPY YEN)
￥960
Straight Blade
-
NEMA Configuration No.
NEMA 5-15
-
Color
White
-
Wire Size
2PNCT/VCT 2mm²、3.5mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R2-4、R3.5-4
-
Body Flammability
UL94 V-0
-
Weight
49.7g
-
Note
Nylon Housing
RoHS2 Compliant
Feauture
Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

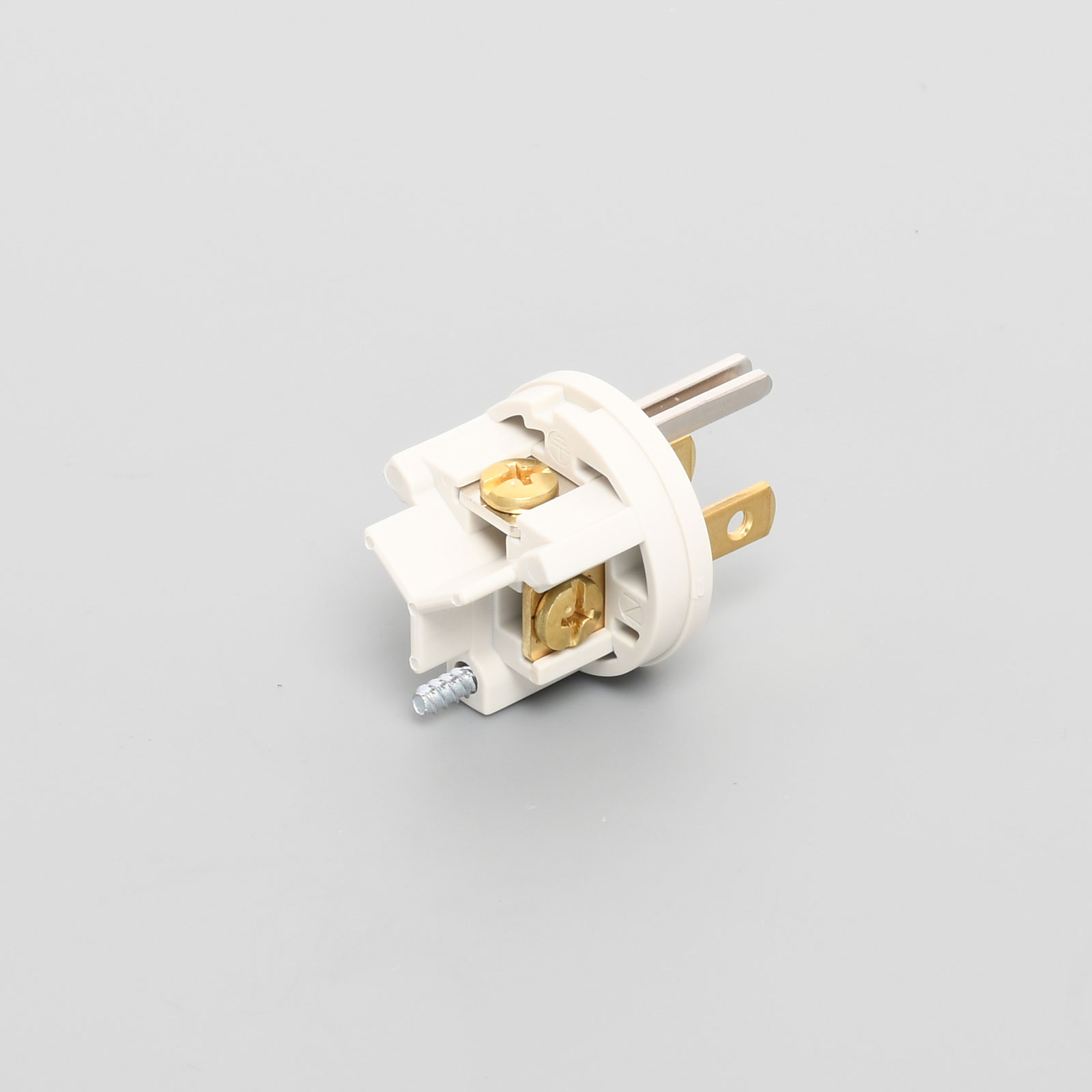

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
