3117HCDZ
2-Pole 3-Wire Grounding 15A 125V

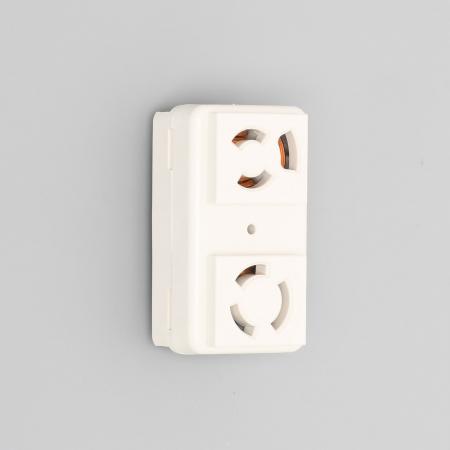

Panel Mount Duplex Outlet
-
Catalog No.
3117HCDZ
-
Price(JPY YEN)
￥1,570
Combination
(Clamp Locking/Twist Locking)
-
Color
White
-
Wire Size
1.6φ〜2φ、2mm², 3.5mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R2-4、R3.5-4
-
Body Flammability
UL94 V-0
-
Weight
73.2g
-
Note
RoHS2 Compliant
Feauture

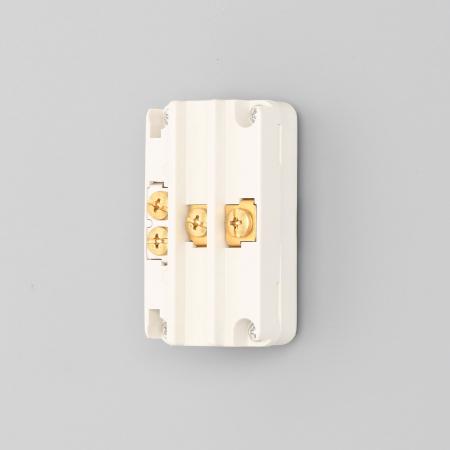

Panel Mount Duplex Outlet is the duplex contact device which is intended for flush embedded on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug. It can be mounted with one screw. Since the terminal parts are arranged in parallel on the back side, wiring work can be done easily.The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
