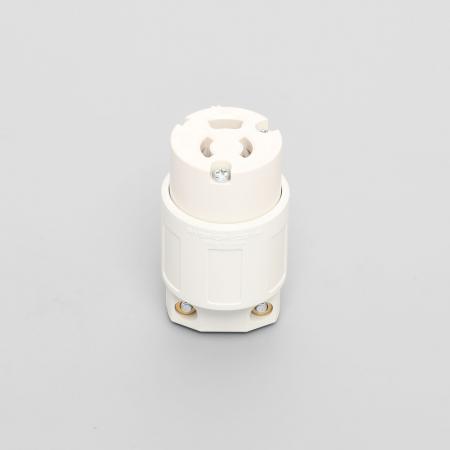

7114GNZ-IV
2-Pole 3-Wire Grounding 15A 125V
Connector Body (Nylon Housing)
-
Catalog No.
7114GNZ-IV
-
Price(JPY YEN)
￥1,260
Clamp Locking
-
Color
White
-
Wire Size
2PNCT/VCT 2mm²、3.5mm²
-
Connectivity
Crimping Terminal
-
Crimp Terminal
R2-4、R3.5-4
-
Body Flammability
UL94 V-0
-
Weight
65.4g
-
Note
Nylon Housing
RoHS2 Compliant
Feauture
Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

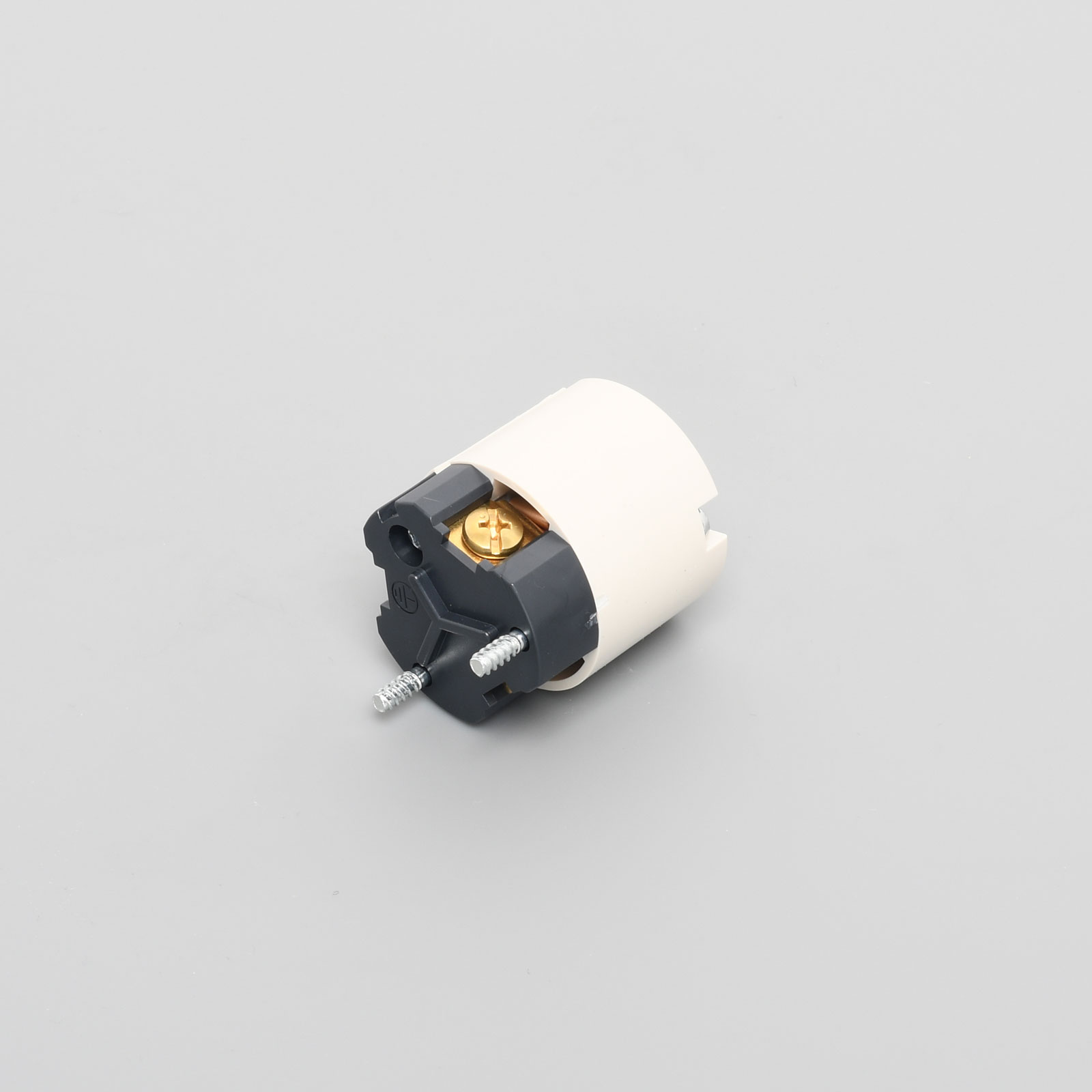

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
