3313E-L5

NEMA

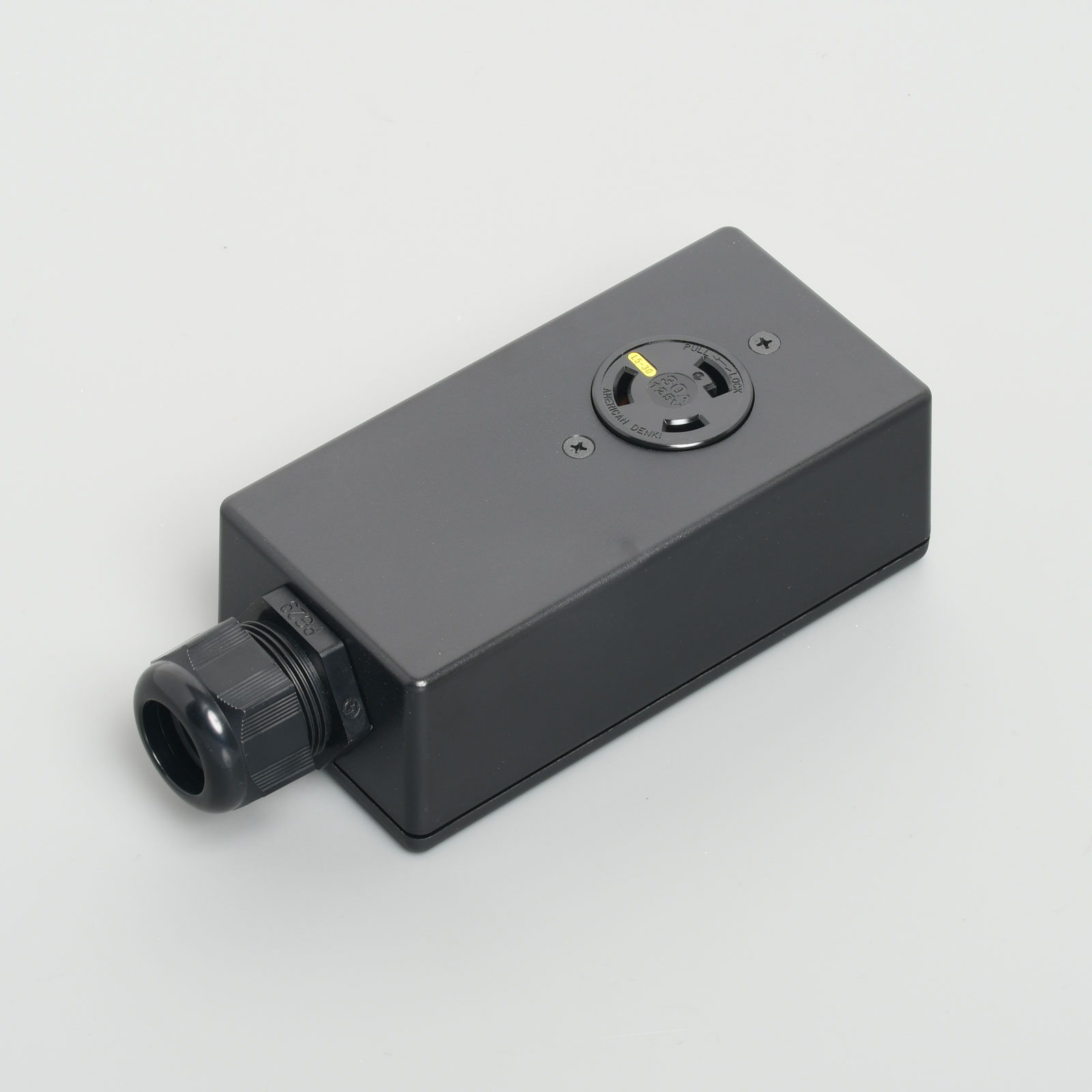

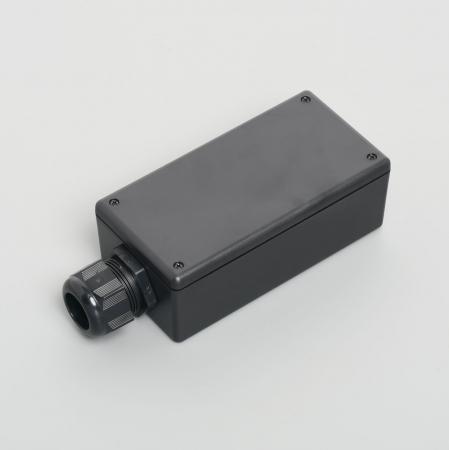

Single Tap (30A Power Strip)

Single Tap (30A Power Strip)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 125V (NEMA L5-30)

Single Tap (30A Power Strip)

  • Catalog No.

    3313E-L5

  • Price(JPY YEN)

    ￥9,540

Twist Locking

  • NEMA Configuration No.

    NEMA L5-30

  • Color

    Black

  • Wire Size

    2CT/VCT 8mm², 14mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R8-5, R14-5

  • Weight

    366.5g

  • Note

    RoHS2 Compliant

Feauture

It is a 1-outlet electrical box with receptacle rated at 30A twist locking, accepts a wide range of 8~14 cable.
It corresponds to wire conductor size increase for reducing current-carrying loss.
The wiring workability is improved by aligning the terminal screws of the built-in receptacle for connecting the crimp terminal all to the same side.
It can be used in machinery facilities and peripheral equipment of 30 A specifications, and further, power supply installation such as UPS and PDU.
Electrical Appliance and Material Safety Law (PSE) compliant product.
