3313NT-L5

NEMA

Double Tap (20A Power Strip)

Double Tap (20A Power Strip)

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 125V (NEMA L5-30)

Double Tap (20A Power Strip)

  • Catalog No.

    3313NT-L5

  • Price(JPY YEN)

    ￥7,890

2 Twist Locking

  • NEMA Configuration No.

    NEMA L5-30

  • Color

    Black

  • Wire Size

    2CT/VCT 5.5mm², 8mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5, R8-5

  • Body Flammability

    UL94 V-0

  • Weight

    556.9g

  • Note

    RoHS2 Compliant

Feauture

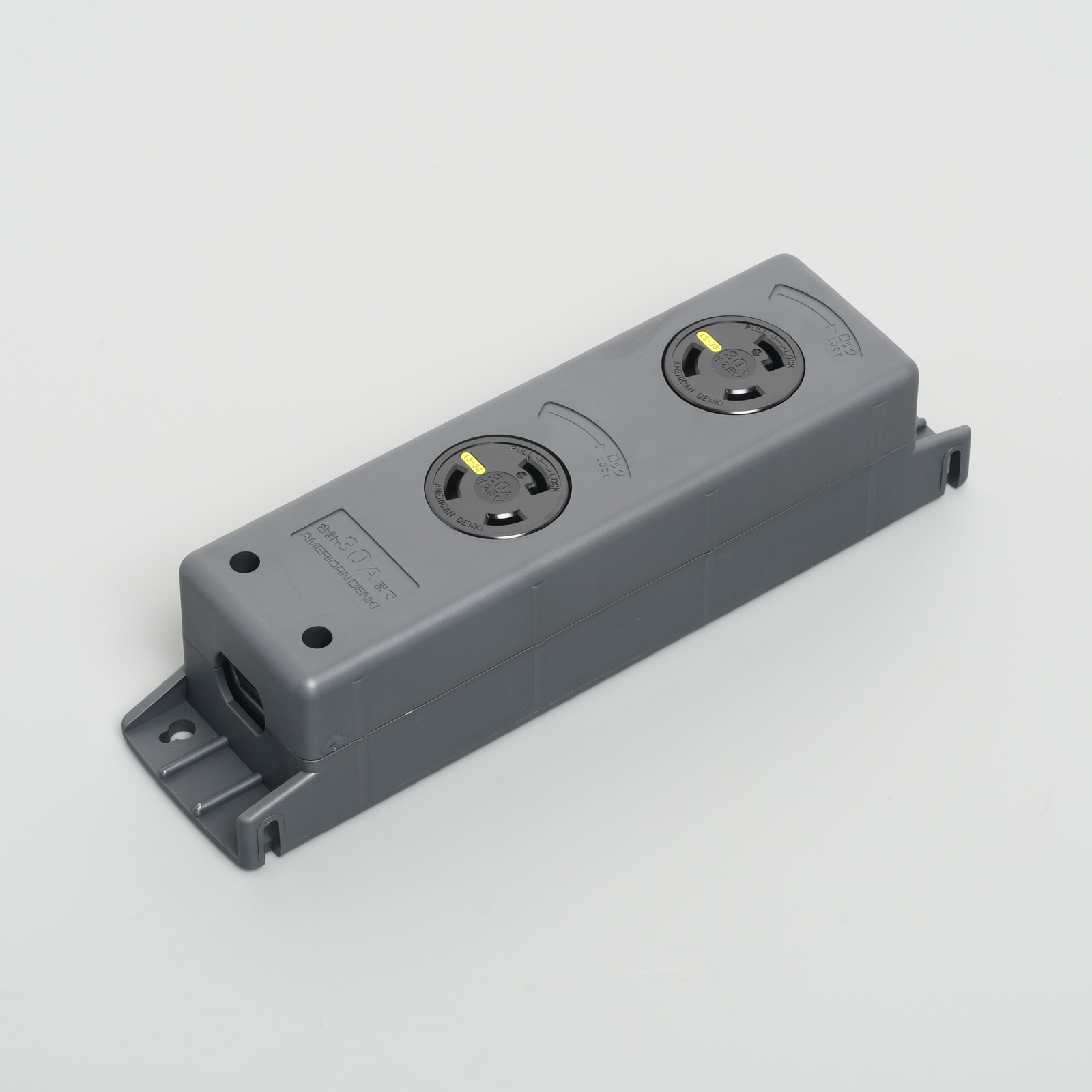

It is an OA tap type twist locking 30A duplex receptacle that can be used fixedly, accepts a wide range of VCT cable sized 5.5~8. It has 2 outlets and it can be used up to a total of 30A. It corresponds to wire conductor size increase for reducing current-carrying loss.

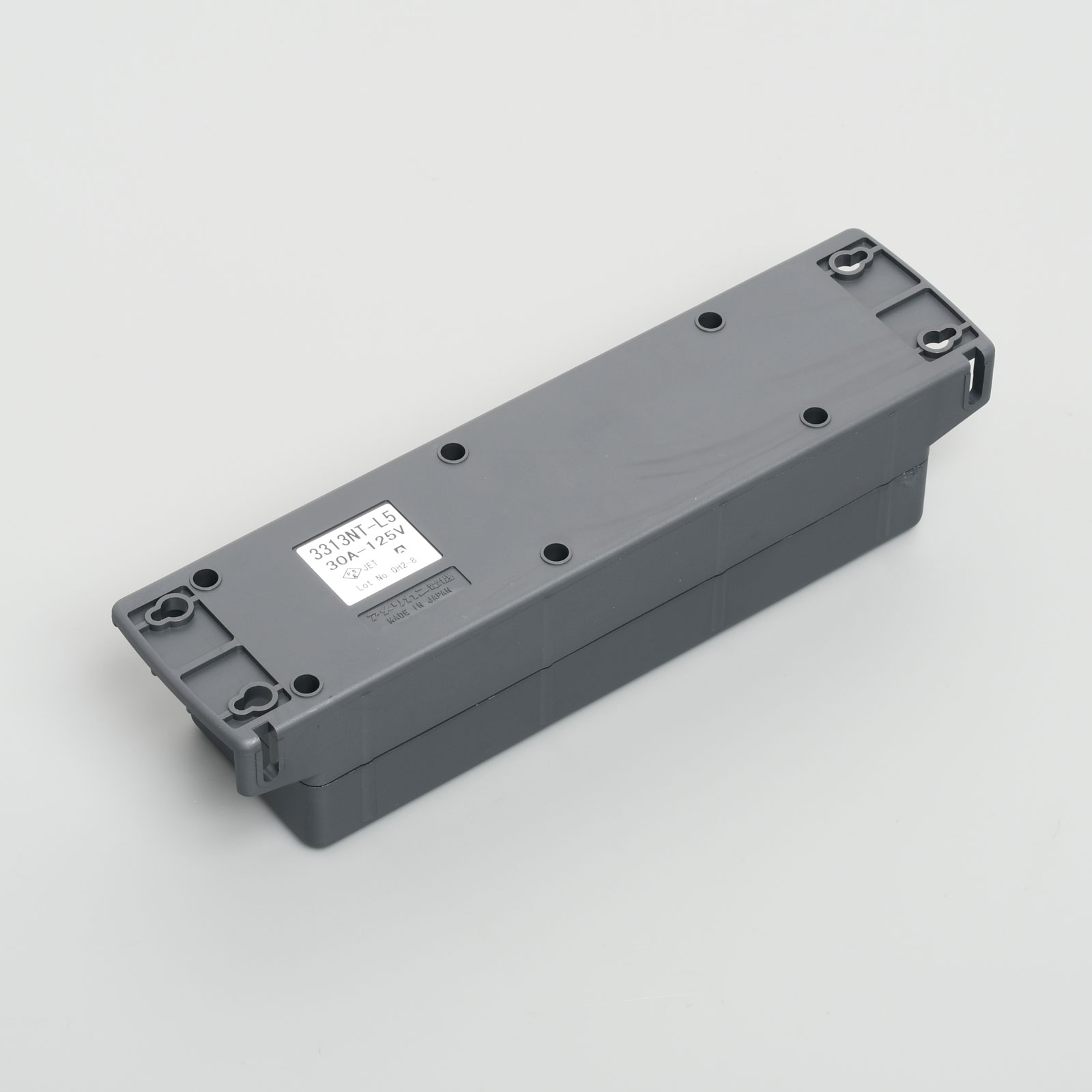

The wiring workability is improved by aligning the terminal screws of the built-in receptacle for connecting the crimp terminal all to the same side.
It can be used in machinery facilities and peripheral equipment of 30 A specifications, and further, power supply installation such as UPS and PDU.
Electrical Appliance and Material Safety Law (PSE) compliant product.
