7113GRK
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
Portable Dividing Box
-
Catalog No.
7113GRK
-
Price(JPY YEN)
￥32,620
4 Straight Blade
-
NEMA Configuration No.
Output: NEMA 5-15
-
Color
Black
-
Weight
1182.5g
-
Note
Available Accessory: Input Connector Body 3224RW
RoHS2 Compliant
Feauture

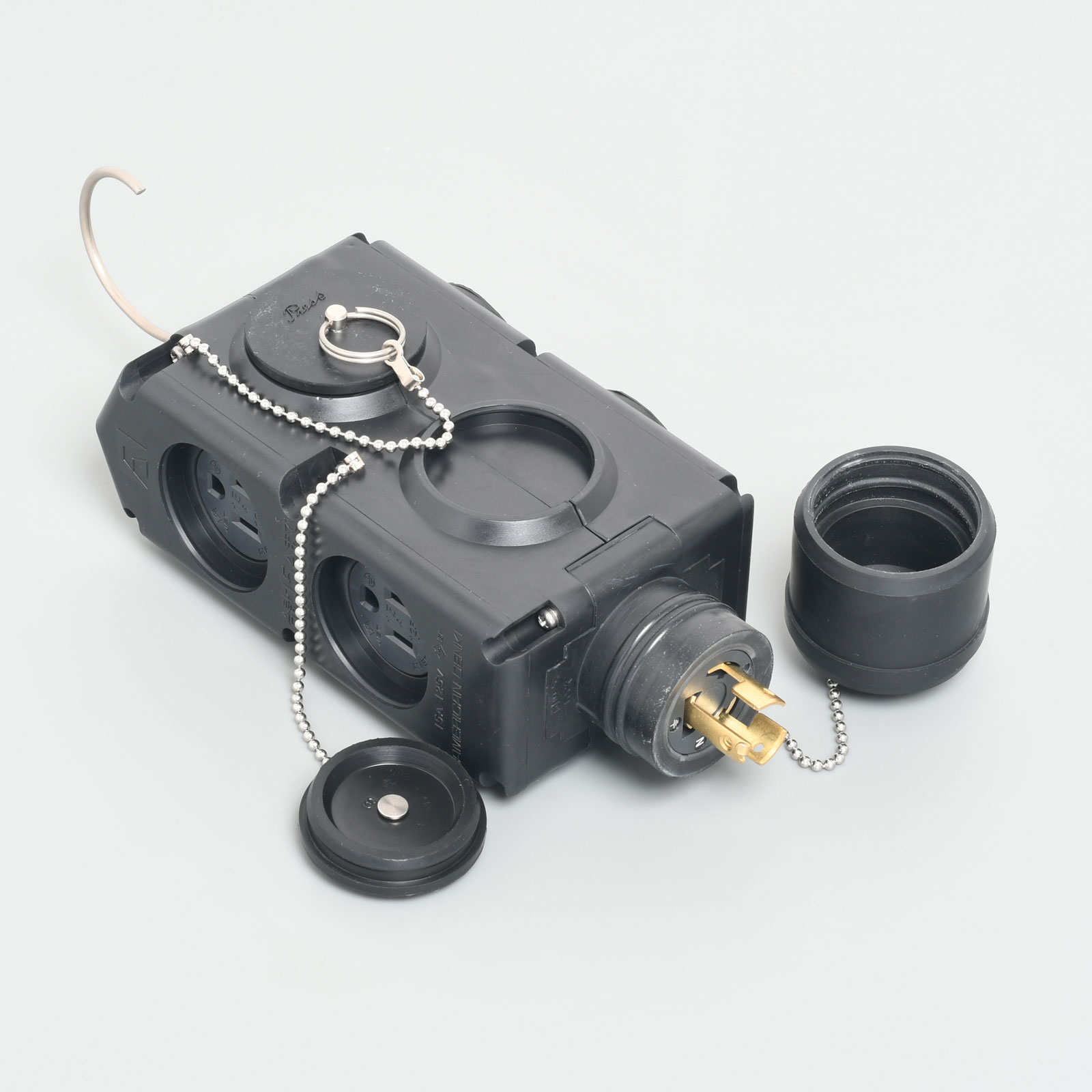

It is a rubber housing type portable dividing box with a hook for hanging, with a structure that can respond to additional power supply and relocation in the field. By connecting the twist locking 20A waterproof connector body to the inlet of the lower part of the main body, the electrical power is supplied to the 15A outlets of 4 places at the top of the main body. The outlet is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances. A blank cover that prevents dust from entering is attached.Electrical Appliance and Material Safety Law (PSE) compliant product.
Optional Accessory
Related Product
-
Catalog No.：
3224RWWaterproof Connector Body
3-Pole 3-Wire 20A 250V
-
Catalog No.：
7112GNPlug (Nylon Housing)
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
-
Catalog No.：
7112GN-IVPlug (Nylon Housing)
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
-
Catalog No.：
7112GR-NewPlug (Rubber Housing)
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
-
Catalog No.：
7112GR-IV-NewPlug (Rubber Housing)
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
-
Catalog No.：
7112GNXLHyper Plug
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
-
Catalog No.：
7112GN-UP1NEMA 5-15 Plug with Cable
2-Pole 3-Wire Grounding 15A 125V (NEMA 5-15)
