HA7122MS

Discontinued

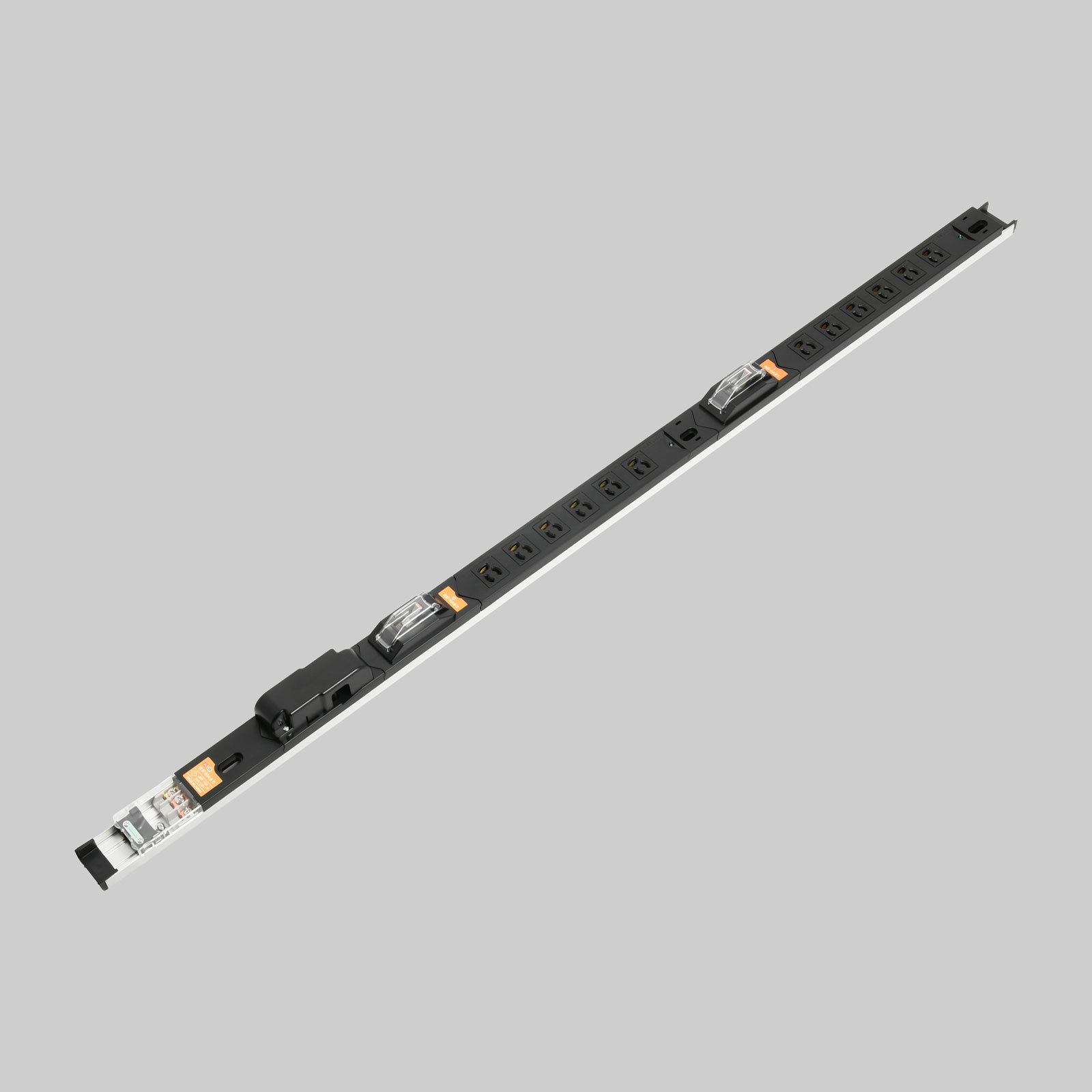

0U Rack Mount PDU, Input 30A/Output 15A Clamp Locking

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 30A 125V

0U Rack Mount PDU, Input 30A/Output 15A Clamp Locking

  • Catalog No.

    HA7122MS

  • Price(JPY YEN)

    ￥33,280

  • Discontinued Date

  • Alternative Product

12 Clamp Locking

  • Color

    Black

  • Wire Size

    VCT 5.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R5.5-5

  • Weight

    1400g

  • Note

    Slim Type
    with 15A Overcurrent Circuit breaker×2
    with Clamping Circuit for Measuring
    Build to Order
    RoHS2 Compliant

*This product is for equipment (Products to be mounted on equipment). Please do not use it for other uses.

Feauture

It is a 30A input rack mount power distribution unit with 12 clamp locking 15A outlet that can be attached in the vertical direction of 19 inch rack. This product has two power supply circuits in one unit, and a 20A safety breaker with a code protection function that immediately detects and cuts off current when an overcurrent due to overload or short circuit occurs is carried on each circuit. By eliminating the slide-rail and mounting brackets, it becomes slim type specification contributed to space saving. The terminal block to wire the cable is covered with a transparent cover which shows the connection state at a glance. It is equipped with a current measurement arch that can measure using current by using clamp type current sensor or clamp meter.
Electrical Appliance and Material Safety Law (PSE) compliant product.
