4320-2-L15

NEMA

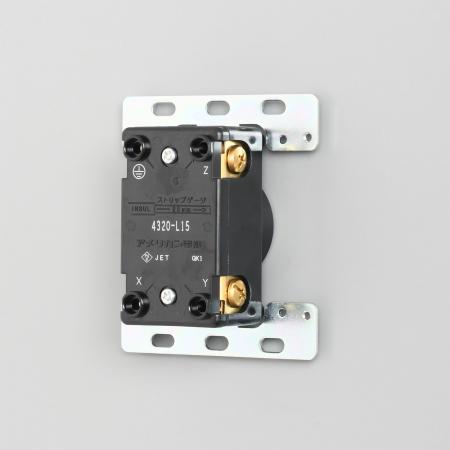

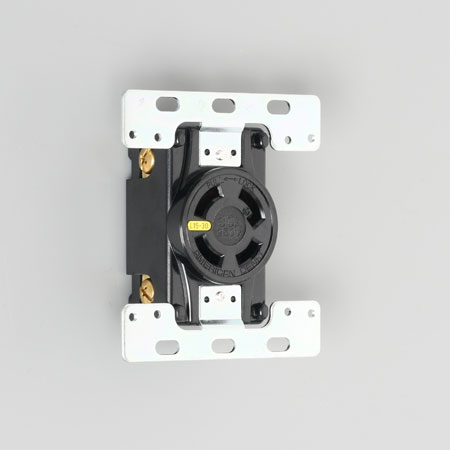

Receptacle for Waterproof Plate

Receptacle for Waterproof Plate

You can see the enlarged image by clicking the image.

Data Sheet Download

3-Pole 4-Wire Grounding 30A 250V (NEMA L15-30)

Receptacle for Waterproof Plate

  • Catalog No.

    4320-2-L15

  • Price(JPY YEN)

    ￥2,850

Twist Locking

  • NEMA Configuration No.

    NEMA L15-30

  • Color

    Black

  • Wire Size

    2.6φ〜3.2φ、5.5mm²、8mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5、R8-5

  • Body Flammability

    UL94 V-0

  • Note

    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.
Unlike the receptacle【4320-L15】, the mounting bracket is larger to make it possible to attach to a waterproof plate (dust & jet proof) 【W701-2】. (for two gang 1 receptacle )
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
