3310-P-L5

NEMA

Panel Receptacle

Panel Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

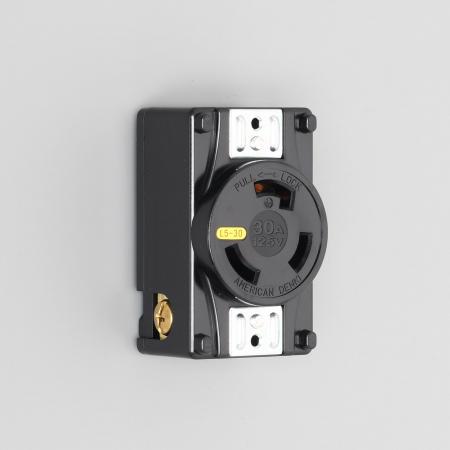

2-Pole 3-Wire Grounding 30A 125V (NEMA L5-30)

Panel Receptacle

  • Catalog No.

    3310-P-L5

  • Price(JPY YEN)

    ￥1,860

Twist Locking

  • NEMA Configuration No.

    NEMA L5-30

  • Color

    Black

  • Wire Size

    2φ〜3.2φ、5.5mm²、8mm²

  • Connectivity

    Crimping Terminal, Push-in-screw Terminal

  • Crimp Terminal

    R5.5-5、R8-5

  • Body Flammability

    UL94 V-0

  • Weight

    134.6g

  • Note

    RoHS2 Compliant

Feauture

Panel Receptacle is the contact device which is intended for flush embedded on an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
The material of the main body is made of thermosetting resin excellent in durable and insulation properties.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
