7110GHDZ

Sideways Duplex Receptacle

Sideways Duplex Receptacle

You can see the enlarged image by clicking the image.

Data Sheet Download

2-Pole 3-Wire Grounding 15A 125V

Sideways Duplex Receptacle

  • Catalog No.

    7110GHDZ

  • Price(JPY YEN)

    ￥1,480

2 Clamp Locking

  • Color

    White

  • Wire Size

    1.6φ〜2φ、2mm²、3.5mm²

  • Connectivity

    Crimping Terminal

  • Crimp Terminal

    R2-4、R3.5-4

  • Body Flammability

    UL94 V-0

  • Weight

    86.7g

  • Note

    Sideways Duplex
    RoHS2 Compliant

Feauture

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.

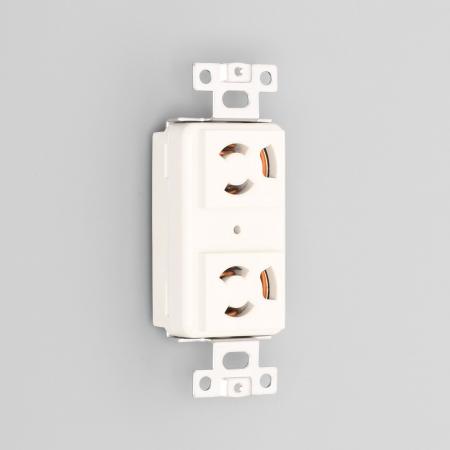

It is sideways duplex receptacle with two outlets in the same direction.
The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

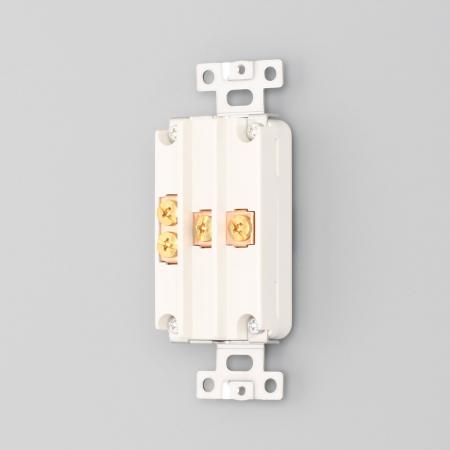

Connectivity is "crimp terminal" tightening the terminal screw on the side.
Electrical Appliance and Material Safety Law (PSE) compliant product.
